| | 1954 - 1960 |
| Utility tractor |
|
Series map:
TO-35
36.6hp*
*Estimated engine power for comparison only.
| Transmission |
| Transmission | Dual Range
|
| Type | unsynchronized gear
|
| Gears | 6 forward and 2 reverse
|
| Oil capacity | 32 qts
30.3 L
|
| Oil type | | 50oF [10oC]↑ | : SAE90 | | 50oF [10oC]↓ | : SAE80 |
|
| Three speeds, plus reverse, with high and low ranges. Range shift lever has low, high, and 'S' positions. Lever must be in S to start tractor. |

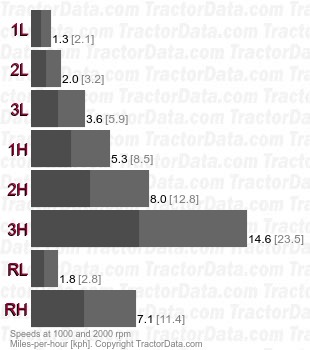

| Speeds |
| With 11-28 rear tires. |
|
| Shift Pattern |
 |
