| | 1960 - 1965 |
| Utility tractor |
|
Series map:
35
41.2hp*
*Estimated engine power for comparison only.
| Transmissions overview |
| 6-speed gear |
| 12-speed partial power shift |
| Transmission |
| Type | gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 32 qts
30.3 L
|
| Oil type |
|
| Speeds |
| With 11-28 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | Multi-Power
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 32 qts
30.3 L
|
| Oil type |
|
| Multi-Power adds a Low-High power shift to the basic transmission. The transmission will free-wheel in Multi-Power low, it must be set to high for engine braking. |

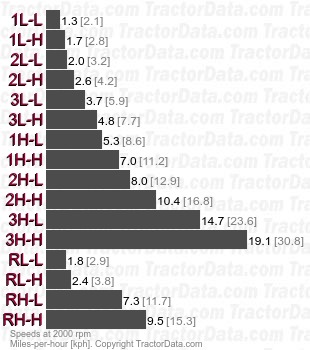

| Speeds |
|
| Page information |
| Contact: Peter Easterlund |
| Updated on May 12, 2022 |
