Tractors > Steiger > Bearcat

Steiger Bearcat

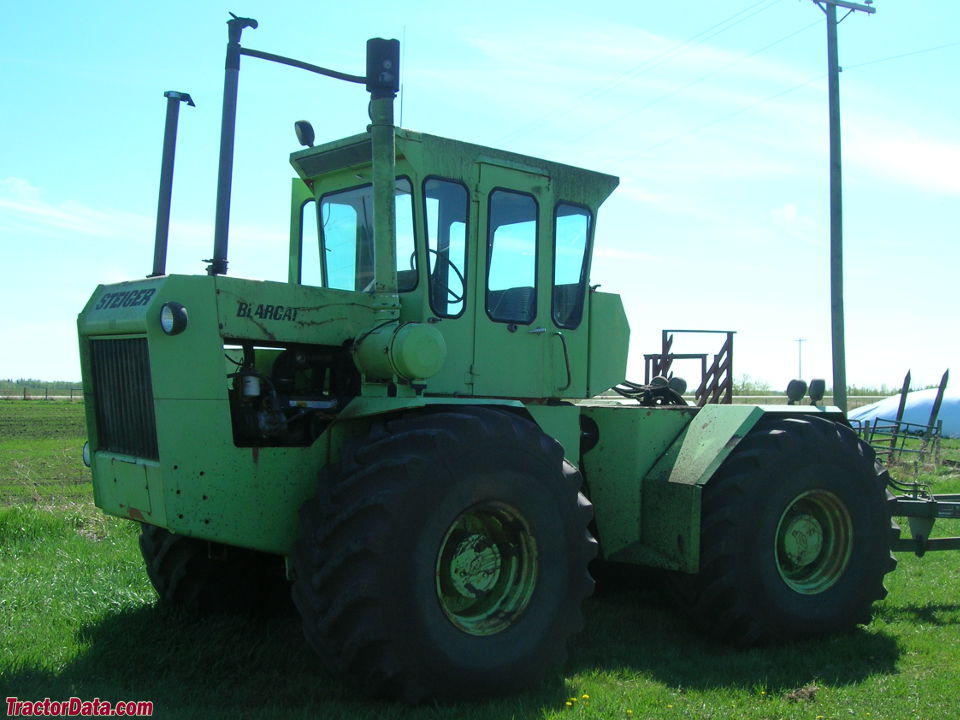

Steiger Bearcat tractor photo
1970 - 1974
I Series
Four-wheel Drive (4WD) tractor
Series map:
Super Wildcat
Bearcat
Cougar
200.0hp
225.0hp
300.0hp
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $23,000 in 1973
Steiger Bearcat Engine
Caterpillar 10.4L 8-cyl diesel
Engine details ...
Steiger Bearcat Transmission
10-speed
Transmission details ...
Steiger Bearcat Power
Engine225 hp
167.8 kW
Drawbar (claimed)159 hp
118.6 kW
Mechanical
Four-wheel drive
Final drivesplanetary
Articulated power steering
Hydraulic disc brakes
Cab standard with available air-conditioning.
Photos

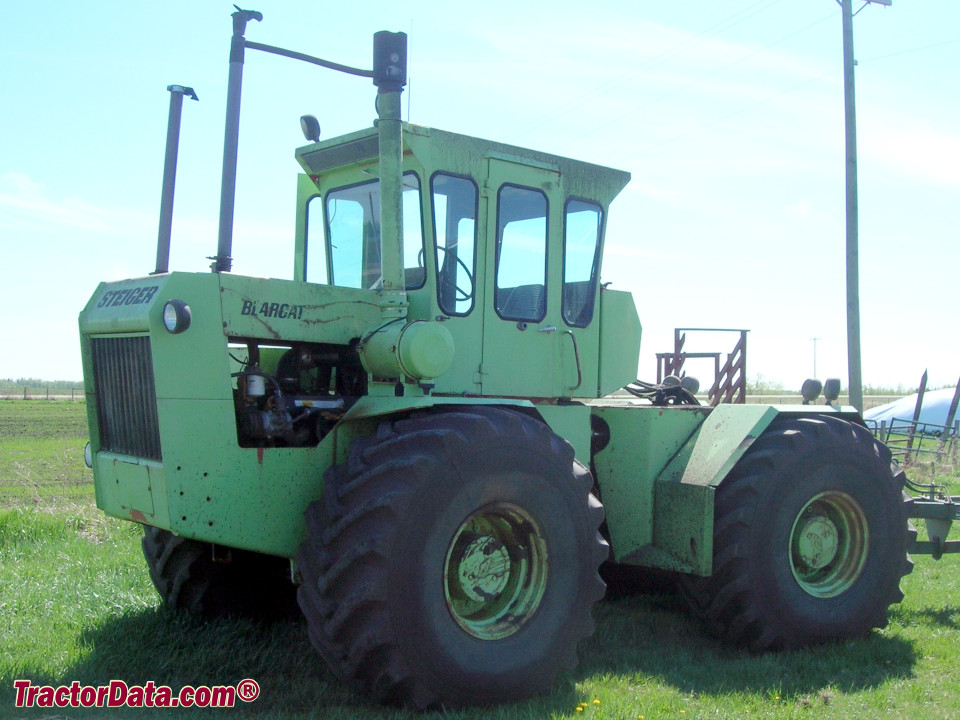

Steiger Bearcat four-wheel drive tractor, left side.
Steiger Bearcat photos...
Capacity
Fuel140 gal
529.9 L
Hydraulic system35 gal
132.5 L
Hydraulics
Typeopen center
Capacity35 gal
132.5 L
Valves3
Pump flow21 gpm
79.5 lpm
Total flow38 gpm
143.8 lpm
Steering flow17 gpm
64.3 lpm
Tractor hitch
Rear TypeIV OptOptional
Rear lift8000 lbs
3628 kg
Dimensions & Tires
Wheelbase120 inches
304 cm
Weight19600 lbs
8890 kg
Front tire18.4-30
Rear tire18.4-30
Full dimensions and tires ...
Bearcat Serial Number Location

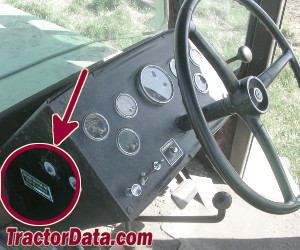

Steiger Bearcat serial number location
Serial number plate inside the tractor cab, on the left side of the console.
Bearcat Serial Numbers
19702000
19712040
19722275
19732442
19742828

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Battery volts12
References
Bearcat references literature
Red Book 1971 published by Implement & Tractor
The Bold 225 B.H.P. Bearcat published in 1969, by Steiger
Bearcat published in 1970, by Steiger
All Wheel Drive Agripower published in 1971, by Canadian Co-operative Implements
Steiger Identification Guide: 1969-1998 published by Case IH
