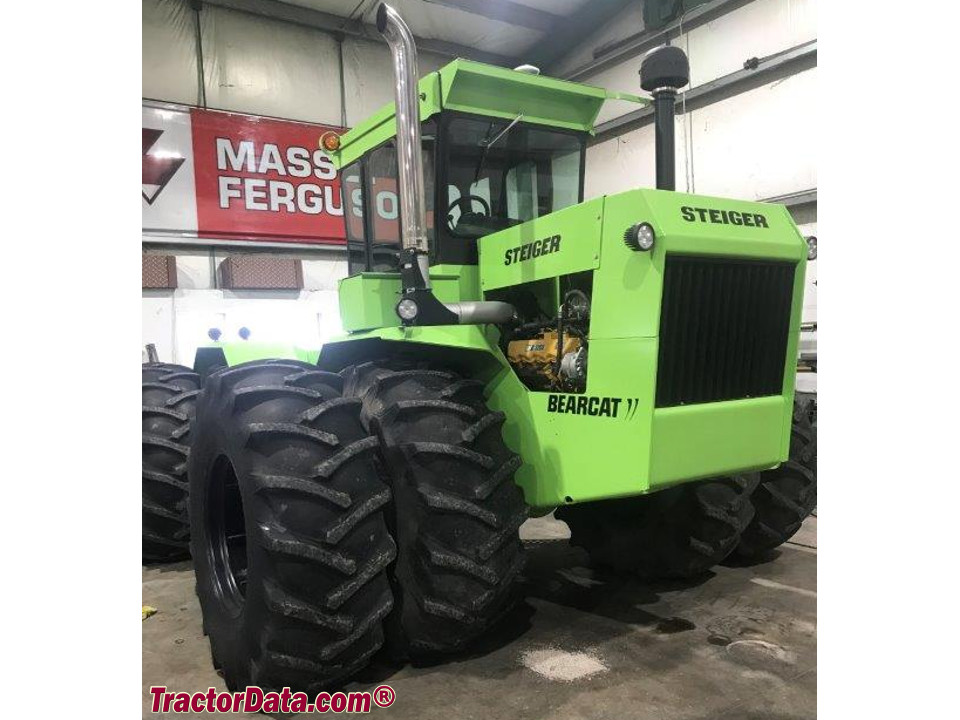

Steiger Bearcat II ST-225
| | 1974 - 1976 |
| II Series | | Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer | Steiger
|
| Four-wheel Drive (4WD) tractor |
| Built in Fargo, North Dakota, USA |
| Original price was $37,000 in 1976 |
| Steiger Bearcat II ST-225 Power |
| Engine | 225 hp
167.8 kW
|
| Drawbar (claimed) | 180 hp
134.2 kW
|
| Drawbar (tested) | 178.24 hp
132.9 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Final drives | outboard planetary
|
| Articulated power steering |
| Hydraulic disc brakes |
| Cab standard with optional heat and air-conditioning. |
| Capacity |
| Fuel | 140 gal
529.9 L
|
| Hydraulic system | 30 gal
113.6 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 30 gal
113.6 L
|
| Pressure | 2000 psi
137.9 bar
|
| Valves | 3
|
| Pump flow | 22 gpm
83.3 lpm
|
| Steering flow | 17.5 gpm
66.2 lpm
|
| Steering press. | 1500 psi
103.4 bar
|
| Tractor hitch |
| Rear Type | III OptOptional
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 55 (early)
|
| | 72 (late)
|
| Battery volts | 12
|
| References |
 |
| Bearcat II published in 1976, by Steiger |
| 4-Wheel Drive Agri-Power published in 1974, by Steiger |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on February 10, 2024 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Full dimensions and tires ...
