New Holland 8770 Tests
|
|
Note: the New Holland model 8770 is the same as the Ford 8770. The following data is from the 8770 listing. |
| OCED Tractor Test 1648 | |||
| |||
| OCED Tractor Test 1648 | |
| Diesel 16-speed 4WD July 1996 - August 1996, Link: OCED Tractor Test 1648 file | |

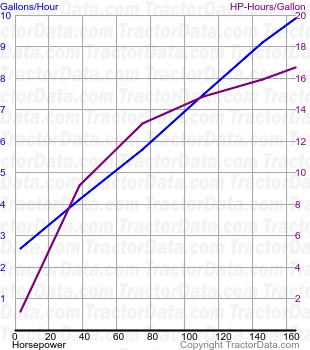

| PTO performance | |
| Max power | 185.9 hp 138.6 kW |
| Fuel use | 10.0 gal/hour 37.9 l/hour |
| Power at rated engine speed | 164.8 hp 122.9 kW |
| Fuel use | 9.9 gal/hour 37.5 l/hour |
| Power at rated PTO speed | 179.4 hp 133.8 kW |
| Fuel use | 10.0 gal/hour 37.9 l/hour |
| Drawbar performance | |
| Max power | 142.3 hp 106.1 kW |
| Fuel use | 9.7 gal/hour 36.7 l/hour |
| Gear 9 used for power test. | |
| Max pull | 140.8 lbs 63 kg |
| Gear 6 used for pull test. | |
