Ford 8770 Tests

Ford 8770 tractor photo
1993 - 2002
70 Genesis Series
Row-Crop tractor
Series map:
OCED Tractor Test 1648

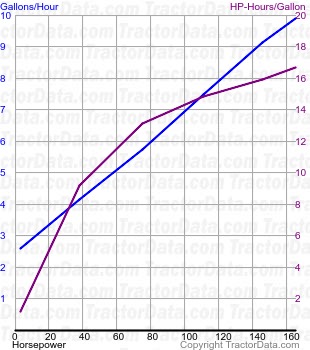

8770 fuel use from test 219
OCED Tractor Test 1648
Diesel 16-speed 4WD
July 1996 - August 1996,
Link: OCED Tractor Test 1648 file
PTO performance
Max power185.9 hp
138.6 kW
Fuel use10.0 gal/hour
37.9 l/hour
Power at rated engine speed164.8 hp
122.9 kW
Fuel use9.9 gal/hour
37.5 l/hour
Power at rated PTO speed179.4 hp
133.8 kW
Fuel use10.0 gal/hour
37.9 l/hour
Drawbar performance
Max power142.3 hp
106.1 kW
Fuel use9.7 gal/hour
36.7 l/hour
Gear 9 used for power test.
Max pull140.8 lbs
63 kg
Gear 6 used for pull test.
