New Holland 8770 Transmission


New Holland 8770 tractor photo
1993 - 2000
70 Genesis Series
Row-Crop tractor
Series map:
8670
8770
8870
170.0hp
190.0hp
210.0hp

Note: the New Holland model 8770 is the same as the Ford 8770. The following data is from the 8770 listing.
Transmissions overview
16-speed full power shift
32-speed creeper
Transmission
Typefull power shift
Gears16 forward and 9 reverse
Speeds
With 18.4-42 rear tires.

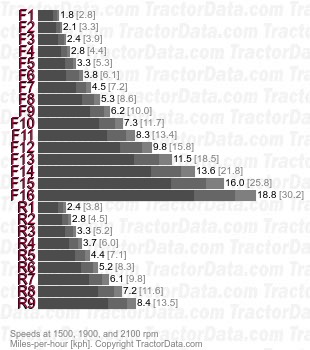

8770  full power shift speeds
Transmission
Typecreeper
Gears32 forward and 18 reverse
Creeper range added to standard power shift transmission. With tractor in neutral and inching pedal pressed, toggle button is used to enter/exit creeper range.
