New Holland 8770 Engine


New Holland 8770 tractor photo
1993 - 2000
70 Genesis Series
Row-Crop tractor
8770
Series:867087708870
8770A

Note: the New Holland model 8770 is the same as the Ford 8770. The following data is from the 8770 listing.
Engine Detail
Ford
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:456 ci
7.5 L
Bore/Stroke:4.4x5.0 inches
112 x 127 mm
Power:190 hp
141.7 kW
Compression:17.5:1
Rated RPM:2100
Firing order:1-5-3-6-2-4
Starter volts:12
Starter power:6 hp
4.5 kW
Coolant capacity:26.4 qts
25.0 L
Engine Oil

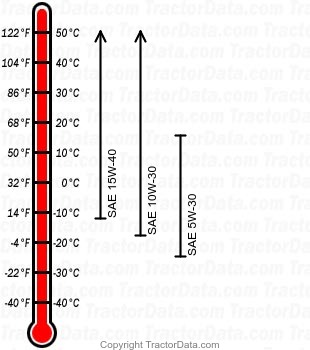

8770 diesel engine oil chart
Oil capacity:22 qts
20.8 L
