New Holland 8670 Engine


New Holland 8670 tractor photo
1993 - 2000
70 Genesis Series
Row-Crop tractor
Series map:
8670
8770
170.0hp
190.0hp

Note: the New Holland model 8670 is the same as the Ford 8670. The following data is from the 8670 listing.
Engine Detail
Ford
turbocharged diesel
6-cylinder
liquid-cooled
Displacement456 ci
7.5 L
Bore/Stroke4.4x5.0 inches
112 x 127 mm
Power170 hp
126.8 kW
Compression17.5:1
Rated RPM2100
Firing order1-5-3-6-2-4
Starter volts12
Starter power6 hp
4.5 kW
Coolant capacity26.4 qts
25.0 L
Intake valve clearance0.014 inches (cold)
0.356 mm
Exhaust valve clearance0.017 inches (cold)
0.432 mm
Engine Oil

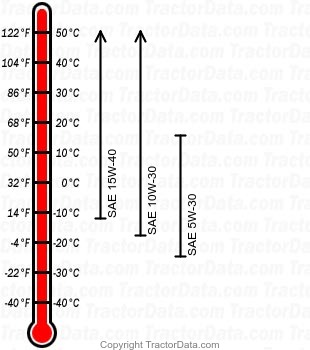

8670 diesel engine oil chart
Oil capacity22 qts
20.8 L
