Ford 8670 Engine


Ford 8670 tractor photo
1993 - 2002
70 Genesis Series
Row-Crop tractor
Series:86708770
8670
Engine Detail
Ford
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:456 ci
7.5 L
Bore/Stroke:4.4x5.0 inches
112 x 127 mm
Power:170 hp
126.8 kW
Compression:17.5:1
Rated RPM:2100
Firing order:1-5-3-6-2-4
Starter volts:12
Starter power:6 hp
4.5 kW
Coolant capacity:26.4 qts
25.0 L
Intake valve clearance:0.014 inches
0.356 mm (cold)
Exhaust valve clearance:0.017 inches
0.432 mm (cold)
Engine Oil

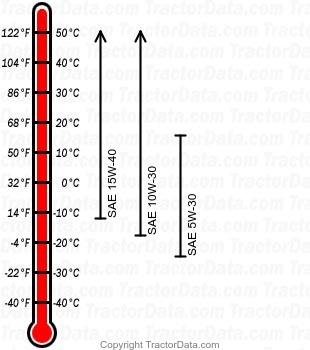

8670 diesel engine oil chart
Oil capacity:22 qts
20.8 L
