New Holland 8670
| | 1993 - 2000 |
| 70 Genesis Series | | Row-Crop tractor |
|
Series map:
8670
8770
170.0hp
190.0hp
Note: the New Holland model 8670 is the same as the Ford 8670. The following data is from the 8670 listing. |
| Production |
| Manufacturer | New Holland
|
| Row-Crop tractor |
| Built in Winnipeg, Manitoba, Canada |
| Original price was $84,500 in 2000 |
| New Holland 8670 Power |
| Engine | 170 hp
126.8 kW
|
| PTO (claimed) | 145 hp
108.1 kW
|
| Drawbar (tested) | 132.1 hp
98.5 kW
|
| PTO (tested) | 167.6 hp
125.0 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Wet disc brakes |
| Cab standard with air-conditioning. |
| Capacity |
| Fuel | 110 gal
416.4 L
|
| Hydraulic system | 30.9 gal
117.0 L
|
| Front hubs | 1.7 qts (each)
1.6 L
|
| Front diff. | 13 qts
12.3 L
|
| Hydraulics |
| Type | closed center load sensing
|
| Capacity | 30.9 gal
117.0 L
|
| Pressure | 2750 psi
189.6 bar
|
| Valves | 3
|
| Pump flow | 24 gpm
90.8 lpm
|
| Total flow | 31 gpm
117.3 lpm
|
| | 55 gpm (MegaFlow optional)
208.2 lpm
|
| Tractor hitch |
| Rear Type | III
|
| Rear lift | 10000 lbs
4536 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic wet disc
|
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540@1878
|
| | 1000@1903
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 130
|
| Batteries | 2
|
| Battery CCA | 950
|
| Battery volts | 12
|

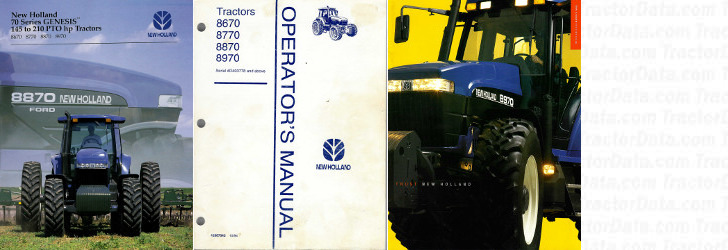

| References |
 |
| 70 Series Genesis Tractors published in 1995, by New Holland |
| Operator's Manual Tractors 8670, 8770, 8870, and 8970 (42867043) published in 1994 |
| North American Buyer's Guide published in 1997, by New Holland |
