J.I. Case 2290 Tests



J.I. Case 2290 tractor photo
1979 - 1983
90 Series
Row-Crop tractor
Series map:
2090
2290
2390
120.0hp*
143.3hp*
178.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1296: diesel 8-speed 2WD
NTTL 1297: diesel 12-speed 2WD
Nebraska Tractor Test 1296

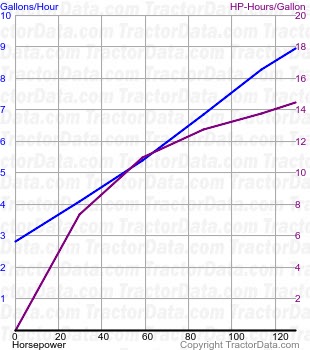

2290 fuel use from test 1296
Nebraska Tractor Test 1296
Diesel 8-speed 2WD
November 7, 1978 - January 4, 1979
Link: Nebraska Tractor Test 1296 file
PTO performance
Power at rated engine speed128.80 hp
96.0 kW
Fuel use8.9 gal/hour
33.7 l/hour
Drawbar performance
Max power106.07 hp
79.1 kW
Fuel use8.5 gal/hour
32.2 l/hour
Gear 3L used for power test.
Max pull12,635 lbs
5731 kg
Gear 1H used for pull test.
Nebraska Tractor Test 1297

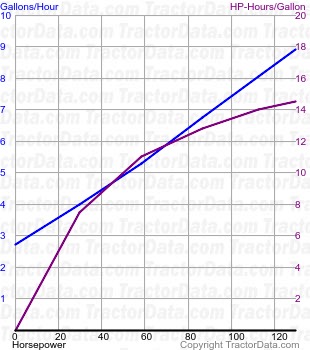

2290 fuel use from test 1297
Nebraska Tractor Test 1297
Diesel 12-speed 2WD
November , - January 4, 1979
Link: Nebraska Tractor Test 1297 file
PTO performance
Power at rated engine speed129.08 hp
96.3 kW
Fuel use8.9 gal/hour
33.7 l/hour
Drawbar performance
Max power109.21 hp
81.4 kW
Fuel use8.6 gal/hour
32.6 l/hour
Gear 3I used for power test.
Max pull12,749 lbs
5782 kg
Gear 2L used for pull test.
