J.I. Case 2090 Tests


J.I. Case 2090 tractor photo
1979 - 1983
90 Series
Row-Crop tractor
Series map:
2090
2290
120.0hp*
143.3hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1295: diesel 12-speed 2WD
NTTL 1304: diesel 8-speed 2WD
Nebraska Tractor Test 1295

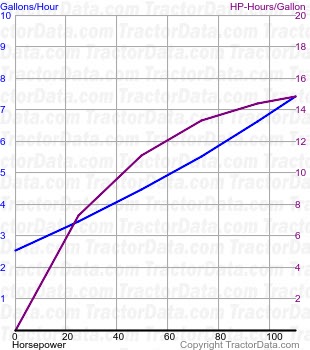

2090 fuel use from test 1295
Nebraska Tractor Test 1295
Diesel 12-speed 2WD
November 6 - 13, 1978
Link: Nebraska Tractor Test 1295 file
PTO performance
Power at rated engine speed108.29 hp
80.8 kW
Fuel use7.2 gal/hour
27.3 l/hour
Drawbar performance
Max power89.40 hp
66.7 kW
Fuel use7.2 gal/hour
27.3 l/hour
Gear 3I used for power test.
Max pull11211 lbs
5085 kg
Gear 2L used for pull test.
Nebraska Tractor Test 1304

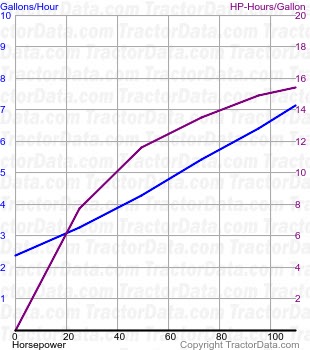

2090 fuel use from test 1304
Nebraska Tractor Test 1304
Diesel 8-speed 2WD
April 11 - 21, 1979
Link: Nebraska Tractor Test 1304 file
PTO performance
Power at rated engine speed108.74 hp
81.1 kW
Fuel use7.1 gal/hour
26.9 l/hour
Drawbar performance
Max power93.17 hp
69.5 kW
Fuel use6.9 gal/hour
26.1 l/hour
Gear 3L used for power test.
Max pull11655 lbs
5286 kg
Gear 1H used for pull test.
