Tractors > J.I. Case > 2390

J.I. Case 2390 Tests



J.I. Case 2390 tractor photo
1979 - 1983
90 Series
Row-Crop tractor
Series map:
2290
2390
2590
143.3hp*
178.6hp*
200.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1302

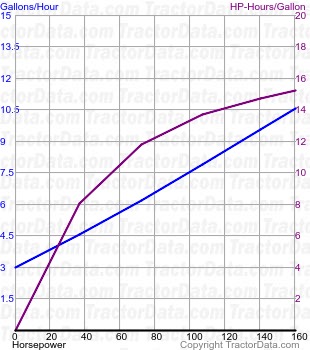

2390 fuel use from test 1302
Nebraska Tractor Test 1302
Diesel 12-speed 2WD
April 6 - 16, 1979
Link: Nebraska Tractor Test 1302 file
PTO performance
Power at rated engine speed160.72 hp
119.8 kW
Fuel use10.6 gal/hour
40.1 l/hour
Drawbar performance
Max power137.72 hp
102.7 kW
Fuel use10.4 gal/hour
39.4 l/hour
Gear 2I used for power test.
Max pull16,020 lbs
7266 kg
Gear 1H used for pull test.
