Tractors > J.I. Case > 1175

J.I. Case 1175 Tests



J.I. Case 1175 tractor photo
1971 - 1978
Row-Crop tractor
Series map:
1175
135.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1062

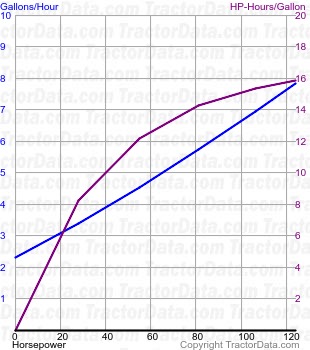

1175 fuel use from test 1062
Nebraska Tractor Test 1062
Diesel 8-speed 2WD
November 6 - 19, 1970
Link: Nebraska Tractor Test 1062 file
PTO performance
Power at rated engine speed121.93 hp
90.9 kW
Fuel use7.7 gal/hour
29.1 l/hour
Power at rated PTO speed118.13 hp
88.1 kW
Fuel use7.2 gal/hour
27.3 l/hour
Drawbar performance
Max power108.15 hp
80.6 kW
Fuel use7.8 gal/hour
29.5 l/hour
Gear 4L used for power test.
Max pull13730 lbs
6227 kg
Gear 2L used for pull test.
