Tractors > John Deere > 4630

John Deere 4630 Tests



John Deere 4630 tractor photo
1973 - 1977
Generation II Series
Row-Crop tractor
Series map:
4430
4630
138.9hp*
166.7hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1113

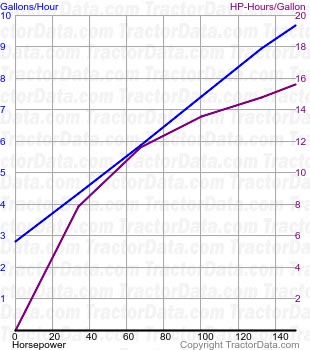

4630 fuel use from test 1113
Nebraska Tractor Test 1113
Diesel Power Shift 2WD
October 13 - 24, 1972
Link: Nebraska Tractor Test 1113 file
PTO performance
Power at rated engine speed150.66 hp
112.3 kW
Fuel use9.6 gal/hour
36.3 l/hour
Drawbar performance
Max power127.92 hp
95.4 kW
Fuel use9.6 gal/hour
36.3 l/hour
Gear 4 used for power test.
Max pull14,478 lbs
6567 kg
Gear 3 used for pull test.
