Tractors > John Deere > 4430

John Deere 4430 Tests



John Deere 4430 tractor photo
1973 - 1977
Generation II Series
Row-Crop tractor
Series map:
4230
4430
4630
111.1hp*
138.9hp*
166.7hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1110

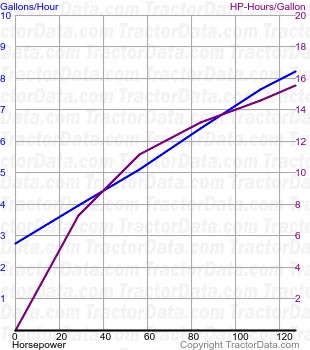

4430 fuel use from test 1110
Nebraska Tractor Test 1110
Diesel Quad-Range 2WD
October 5 - 13, 1974
Link: Nebraska Tractor Test 1110 file
PTO performance
Power at rated engine speed125.88 hp
93.9 kW
Fuel use8.1 gal/hour
30.7 l/hour
Drawbar performance
Max power104.99 hp
78.3 kW
Fuel use8.1 gal/hour
30.7 l/hour
Max pull12032 lbs
5457 kg
