Tractors > John Deere > 4620

John Deere 4620 Tests



John Deere 4620 tractor photo
1971 - 1972
Row-Crop tractor
Series map:
4320
4620
127.8hp*
150.0hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1064: diesel PowerShift 2WD
NTTL 1073: diesel SyncroRange 2WD
Nebraska Tractor Test 1064

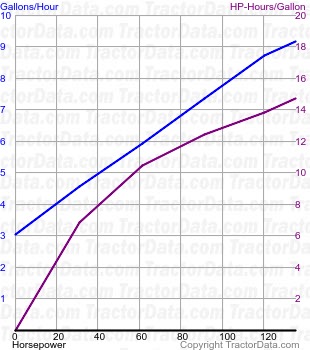

4620 fuel use from test 1064
Nebraska Tractor Test 1064
Diesel PowerShift 2WD
April 20 - May 4, 1971
Link: Nebraska Tractor Test 1064 file
PTO performance
Power at rated engine speed135.62 hp
101.1 kW
Fuel use9.2 gal/hour
34.8 l/hour
Power at rated PTO speed130.79 hp
97.5 kW
Fuel use8.3 gal/hour
31.4 l/hour
Drawbar performance
Max power110.92 hp
82.7 kW
Fuel use9.1 gal/hour
34.4 l/hour
Gear 4 used for power test.
Max pull14,471 lbs
6564 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1073

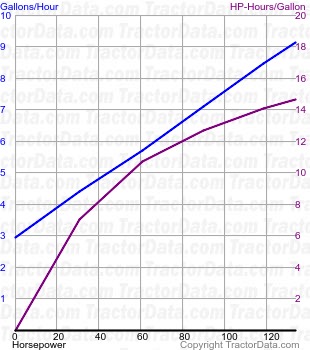

4620 fuel use from test 1073
Nebraska Tractor Test 1073
Diesel SyncroRange 2WD
June 16 - 22, 1971
Link: Nebraska Tractor Test 1073 file
PTO performance
Power at rated engine speed135.76 hp
101.2 kW
Fuel use9.2 gal/hour
34.8 l/hour
Power at rated PTO speed130.27 hp
97.1 kW
Fuel use8.4 gal/hour
31.8 l/hour
Drawbar performance
Max power115.75 hp
86.3 kW
Fuel use9.1 gal/hour
34.4 l/hour
Gear 4 used for power test.
Max pull13,916 lbs
6312 kg
Gear 2 used for pull test.
