John Deere 4630
| | 1973 - 1977 |
| Generation II Series | | Row-Crop tractor |
|
Series map:
4430
4630
138.9hp*
166.7hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Waterloo, Iowa, USA |
| Original price was $27,080 in 1977 |
| John Deere 4630 Power |
| PTO (claimed) | 150 hp
111.9 kW
|
| Drawbar (tested) | 127.92 hp
95.4 kW
|
| PTO (tested) | 150.66 hp
112.3 kW
|
 Performance test details ... |
| Mechanical |
| Drive | 4x2 2WD
|
| | 4x4 HFWD 4WD
|
| Final drives | planetary
|
| Differential lock | hydro-mechanical rear
|
| Power steering |
| Differential hydraulic wet disc brakes |
| Sound-Gard cab with air-conditioning standard. |
| Hydraulics |
| Type | closed center
|
| Valves | 1 to 3
|
| Tractor hitch |
| Rear Type | III/IIIN
|
| Rear lift | 5260 lbs
2385 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000 (1.375)
|
| 4630 Serial Number Location |
 |

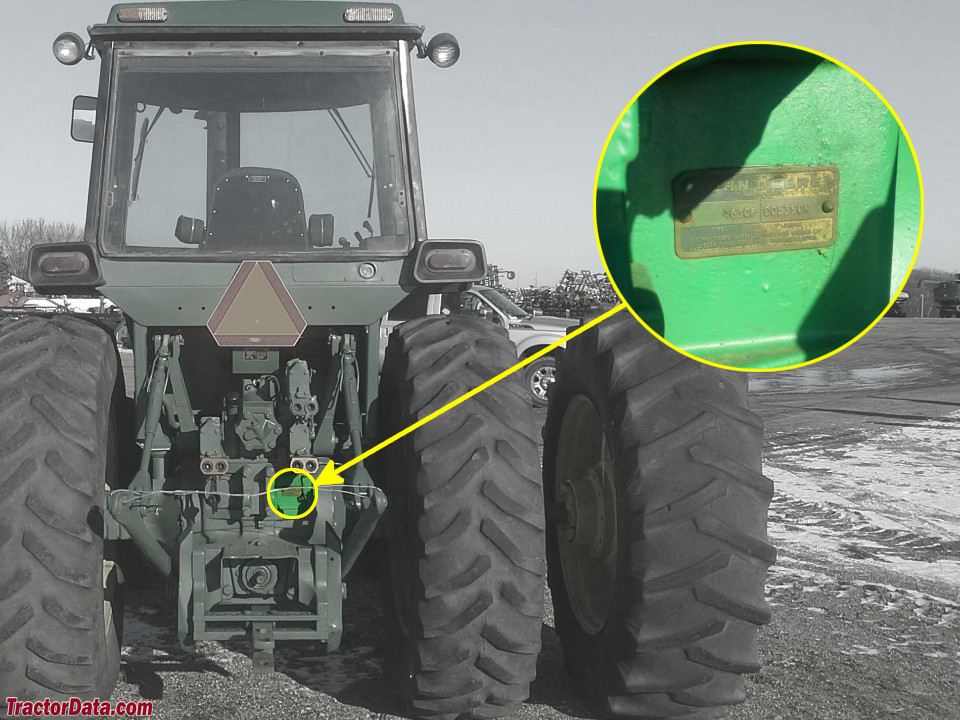

| Serial number plate on the rear of the John Deere 4630, right side, above the PTO shaft. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Batteries | 2
|
| Battery volts | 6
|
| References |
 |
| 4230-4430-4630 published in 1974, by John Deere |
| Tractors 80 to 150 hp published in 1975, by John Deere |
| Making you next tractor a John Deere has traditionally been a good investment published in 1975 |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 4, 2023 |
