Tractors > John Deere > 7020

John Deere 7020 Tests



John Deere 7020 tractor photo
1971 - 1975
Four-wheel Drive (4WD) tractor
Series map:
7020
7520
162.4hp*
194.4hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1063

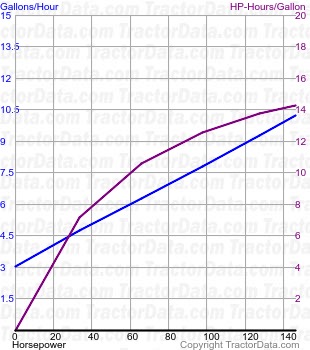

7020 fuel use from test 1063
Nebraska Tractor Test 1063
Diesel 16-speed 4WD
April 20 - May 4, 1971
Link: Nebraska Tractor Test 1063 file
PTO performance
Power at rated engine speed146.17 hp
109.0 kW
Fuel use10.2 gal/hour
38.6 l/hour
Drawbar performance
Max power127.72 hp
95.2 kW
Fuel use10.0 gal/hour
37.9 l/hour
Gear 4-Lo used for power test.
Max pull18,726 lbs
8494 kg
Gear 1-Hi used for pull test.
