| | 1971 - 1975 |
| Four-wheel Drive (4WD) tractor |
|
Series map:
7020
7520
162.4hp*
194.4hp*
*Estimated engine power for comparison only.
| Transmissions overview |
| 8-speed partially synchronized |
| 16-speed partially synchronized |
| Transmission |
| Transmission | Syncro-Range
|
| Type | partially synchronized
|
| Gears | 8 forward and 2 reverse
|
| Oil capacity | 88 qts
83.3 L
|
| Transmission |
| Transmission | Syncro-Range Hi-Lo
|
| Type | partially synchronized
|
| Gears | 16 forward and 4 reverse
|
| Eight-speed Deere Synchro-Range transmission with added high and low gears. |

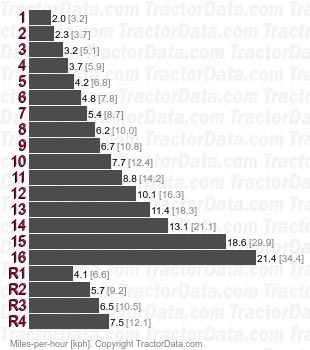

| Speeds |
|
