Tractors > John Deere > 7520

John Deere 7520 Tests



John Deere 7520 tractor photo
1972 - 1975
Four-wheel Drive (4WD) tractor
Series map:
7020
7520
162.4hp*
194.4hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1101

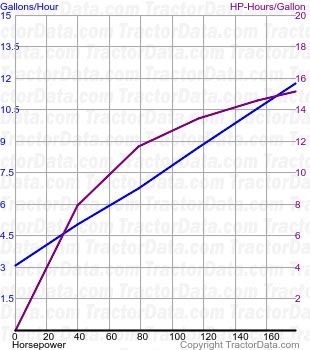

7520 fuel use from test 1101
Nebraska Tractor Test 1101
Diesel 16-speed 4WD
May 25 - June 6, 1972
Link: Nebraska Tractor Test 1101 file
PTO performance
Power at rated engine speed175.82 hp
131.1 kW
Fuel use11.6 gal/hour
43.9 l/hour
Drawbar performance
Max power160.46 hp
119.7 kW
Fuel use11.7 gal/hour
44.3 l/hour
Gear 4-Lo used for power test.
Max pull22,517 lbs
10213 kg
Gear 1-Hi used for pull test.
