Tractors > John Deere > 8430

John Deere 8430 Tests



John Deere 8430 tractor photo
1975 - 1978
Generation II Series
Four-wheel Drive (4WD) tractor
Series map:
8430
8630
194.4hp*
275.0hp
Nebraska Tractor Test 1179

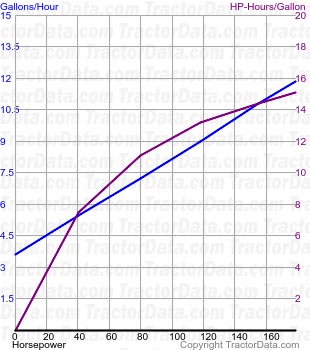

8430 fuel use from test 1179
Nebraska Tractor Test 1179
Diesel 16-speed 4WD
June 3 - 10, 1975
Link: Nebraska Tractor Test 1179 file
PTO performance
Power at rated engine speed178.16 hp
132.9 kW
Fuel use11.8 gal/hour
44.7 l/hour
Drawbar performance
Max power155.56 hp
116.0 kW
Fuel use11.6 gal/hour
43.9 l/hour
Max pull22,503 lbs
10207 kg
