Ford 550
| | 1975 - 1978 |
| Backhoe loader tractor |
|
Series map:
550
650
59.0hp
75.5hp
| Production |
| Manufacturer | Ford
|
| Backhoe loader tractor |
| Ford 550 Power |
| Engine (gross) | 59 hp
44.0 kW
|
| Engine (net) | 56 hp
41.8 kW
|
| Mechanical |
| Two-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Mechanical wet disc brakes |
| Four-post ROPS canopy. Optional cab with heater. |
| Capacity |
| Fuel | 24 gal
90.8 L
|
| Hydraulic system | 21 gal
79.5 L
|
| Steering | 2 qts
1.9 L
|
| Front axle | 33.6 qts
31.8 L
|
| Hydraulics |
| Capacity | 21 gal
79.5 L
|
| Pressure | 2200 psi
151.7 bar
|
| Pump flow | 25.3 gpm
95.8 lpm
|
| Steering cap. | 2 qts
1.9 L
|
| 550 Serial Numbers |
| Location: | Data plate on the left side of tractor's steering console.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 32
|
| | 51 (optional)
|
| Charging volts | 12
|
| Battery volts | 12
|
| Battery AH | 80 (gas)
|
| | 128 (diesel)
|
| References |
 |

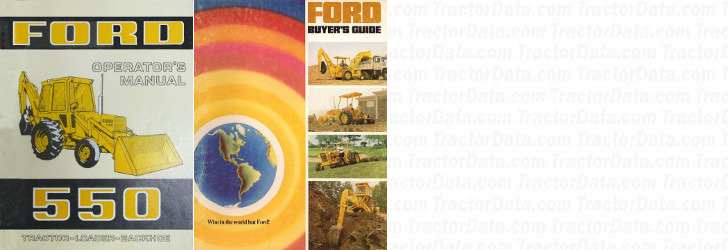

| Operator's Manual 550 (SE 3495) published in 1975 |
| Buyer's Guide published in 1976, by Ford |
