Ford 550 Engine
|
|
| Series: | 550 | → 650 |
| Engines overview | |
| Ford 3.3L 3-cyl diesel | |
| Ford 3.3L 3-cyl gasoline |
| Engine Detail | |
| Ford | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement | 201 ci 3.3 L |
| Bore/Stroke | 4.4x4.4 inches 112 x 112 mm |
| Power (gross) | 59 hp 44.0 kW |
| Rated RPM | 2200 |
| Idle RPM | 600-2450 |
| Firing order | 1-2-3 |
| Starter | electric |
| Starter volts | 12 |
| Coolant capacity | 15.3 qts 14.5 L |
| Coolant change | annually |
| Intake valve clearance | 0.014 inches (hot) 0.356 mm |
| Exhaust valve clearance | 0.017 inches (hot) 0.432 mm |

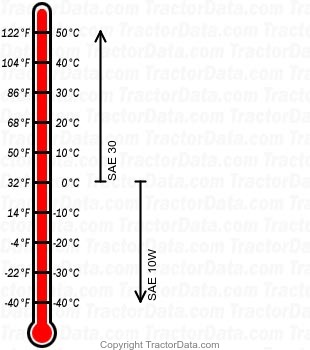

| Engine Oil | |
| |
| Oil capacity | 7 qts 6.6 L |
| Oil change | 300 h |
| Engine Detail | |
| Ford | |
| gasoline | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement | 201 ci 3.3 L |
| Bore/Stroke | 4.4x4.4 inches 112 x 112 mm |
| Fuel system | updraft carburetor |
| Cooling system | annual |
| Rated RPM | 2200 |
| Firing order | 1-2-3 |
| Starter | electric |
| Starter volts | 12 |
| Coolant capacity | 15.3 qts 14.5 L |
| Sparkplug | Motorcraft AG5 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.025 inches 0.635 mm |
| Intake valve clearance | 0.016 inches (hot) 0.406 mm |
| Exhaust valve clearance | 0.019 inches (hot) 0.483 mm |
| Engine Oil | |
| |
| Oil capacity | 7 qts 6.6 L |
| Oil change | 300 h |
