| 1975 - 1978 |
Backhoe loader tractor |
|
Series map:
550
650
59.0hp
75.5hp
Transmission options |
4-speed torque converter |
6-speed gear |
Transmission |
Type | torque converter
|
Gears | 4 forward and reverse
|
Oil capacity | 19 qts 18.0 L
|
Oil type |
|
Oil change | 600 h (filter)
|
  | 1200 h (oil)
|
Four-speed gear shift with left-hand reverser. Power shuttle shifting from forward to reverse when the engine is below 1200 RPM. Tractor must be stopped, reverser placed in neutral, and engine RPM below 1200 to shift gears. |
Speeds |
|
Transmission |
Type | gear
|
Gears | 6 forward and 4 reverse
|
Clutch | 330.2mm dry disc
|
Oil capacity | 13.2 qts 12.5 L
|
Oil type |
|
Oil change | 1200 h
|
Three forward and two reverse gears, with high-low range shift. Tractor must be stopped, and clutch used, to shift gears or range. |

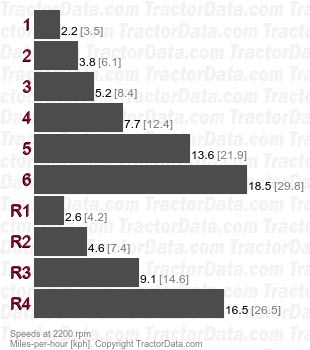

Speeds |
|
