Ford YT-16

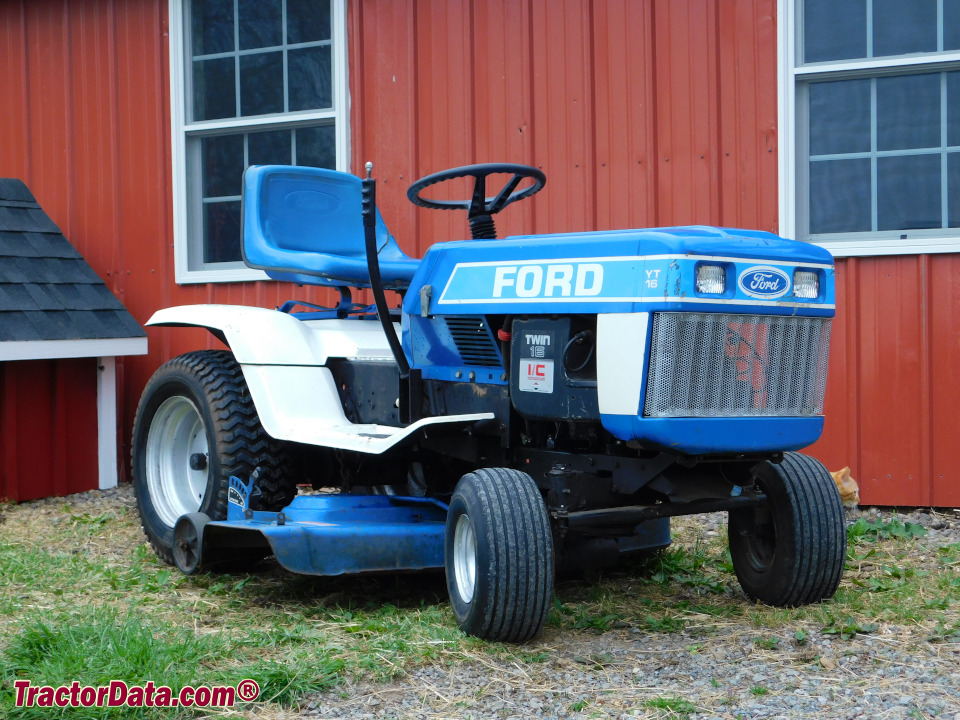

Ford YT-16 lawn tractor photo
1984 - 1993
Model year
YT Series
Garden tractor
Gilson built
Series:YT-12.5YT-16YT-16H
Production
Distributor:Ford
Manufacturer:Gilson
Type:Garden tractor
Original price:$2,500 (1985 )
Variants
YT-16:5-speed
YT-16H:hydrostatic
Ford YT-16 Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:manual caliper
Cab:Open operator station. Vinyl cab optional.
Transmission:5-speed gear
Transmission details ...
Capacity
Fuel:1 gal
3.8 L (1984)
 2.31 gal
8.7 L (early)
 4 gal
15.1 L (late)
Power Take-off (PTO)
Mid PTO:independent
Clutch:electric
Dimensions & Tires
Wheelbase:49 inches
124 cm
Weight:436 to 738 pounds
Front tire:15-6x6
Rear tire:22-7.50x12
Full dimensions and tires ...
Ford YT-16 attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
YT-16 Serial Numbers
Location:Model codes shown in parentheses.
1985: (09GN2151)
1986: (09GN2152)
1987: (09GN2153)
1988: (9607431)
1989: (9607431)

how to read serial numbers...

Electrical
Ground:negative
Charging amps:16
Battery
Number:1
Cold-cranking amps:220
Volts:12
