Ford YT-12.5


Ford YT-12.5 lawn tractor photo
1987 - 1990
Model year
YT Series
Garden tractor
Series:YT-12.5YT-16
Production
ManufacturerFord
TypeGarden tractor
Ford YT-12.5 Engine
12.5HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank4 gal
15.1 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual pinion and sector
Brakescaliper disc on transaxle
CabOpen operator station. Optional vinyl cab.
Dimensions & Tires
Wheelbase49 inches
124 cm
Weight688 lbs
312 kg
Front tire15x6.00-6
Rear tire22x8.00-12
Full dimensions and tires ...
Ford YT-12.5 attachments
38" mid-mount mower deck
42" mid-mount mower deck
snowblower
Attachment details ...
YT-12.5 Serial Numbers
198709GN-2155
19889607430
19899607430
19909801250

How to read a serial number table...
YT-12.5 Serial Location

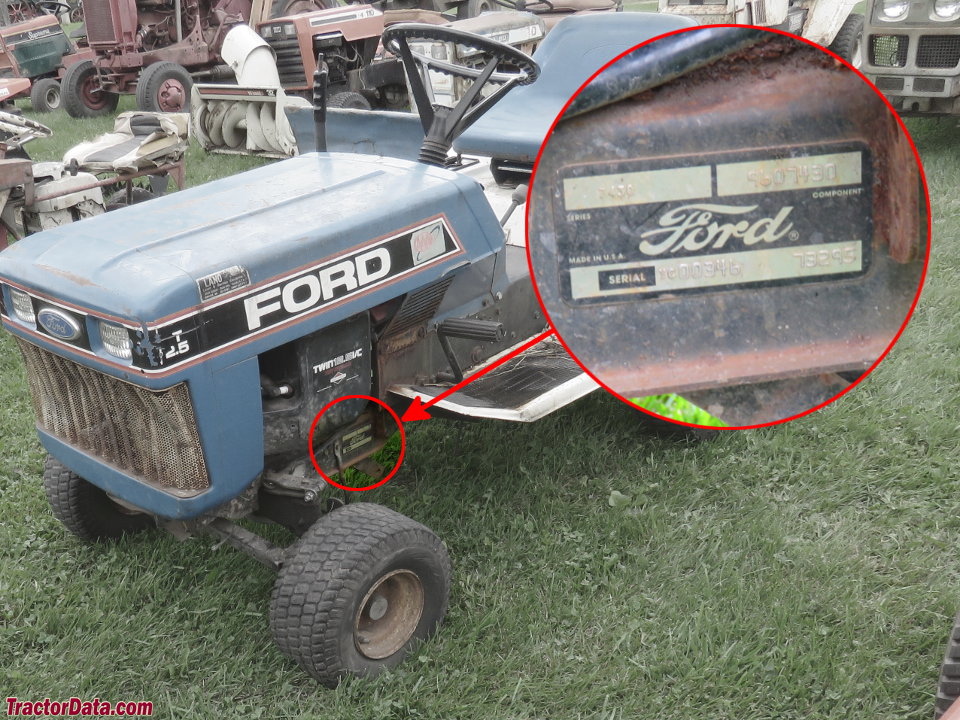

Ford YT-12.5 serial number location
Serial number plate on the left side of the Ford YT-12.5 tractor frame, behind the front axle. Model codes shown.
Electrical
Charging systemunregulated
Charging amps5
Battery CCA175
Battery volts12
