Lawn Tractors > John Deere > X729

John Deere X729

John Deere X729 lawn tractor photo
2008 - 2012   Select X700 Series
Garden tractor
Next model:John Deere X739
Series next:John Deere X740
Series back:John Deere X728






Production:

Manufacturer:John Deere
Original price (USD):$11,149 (2011)


Variants:

X720:two-wheel drive
X724:2WD, all-wheel steer
X728:four-wheel drive
X729:4WD, all-wheel steer


John Deere X729 Engine:

   27HP Kawasaki 745cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:6.5 gal [24.6 L] (2006-2010)
 5.2 gal [19.7 L] (2011-)


3-Point Hitch:

Rear Type:0 (optional)
 1-Limited (optional)


Power Take-off (PTO):

Rear PTO:independent (optional)
Rear RPM:540
Mid PTO:independent
Mid RPM:2000
Front PTO:optional
Front RPM:2000


Dimensions & Tires:

Wheelbase:56 inches [142 cm]
Weight:1,056 lbs [479 kg]
Front tire:18x8.50-10
Rear tire:16x12.00-12
full dimensions and tires ...


John Deere X729 attachments:

 48" mid-mount mower deck
 54" mid-mount mower deck
 62" mid-mount mower deck
all X729 attachments ...


X729 Serial Numbers:

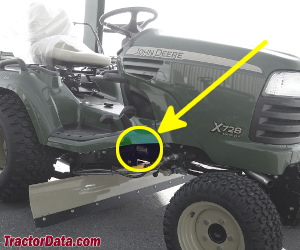

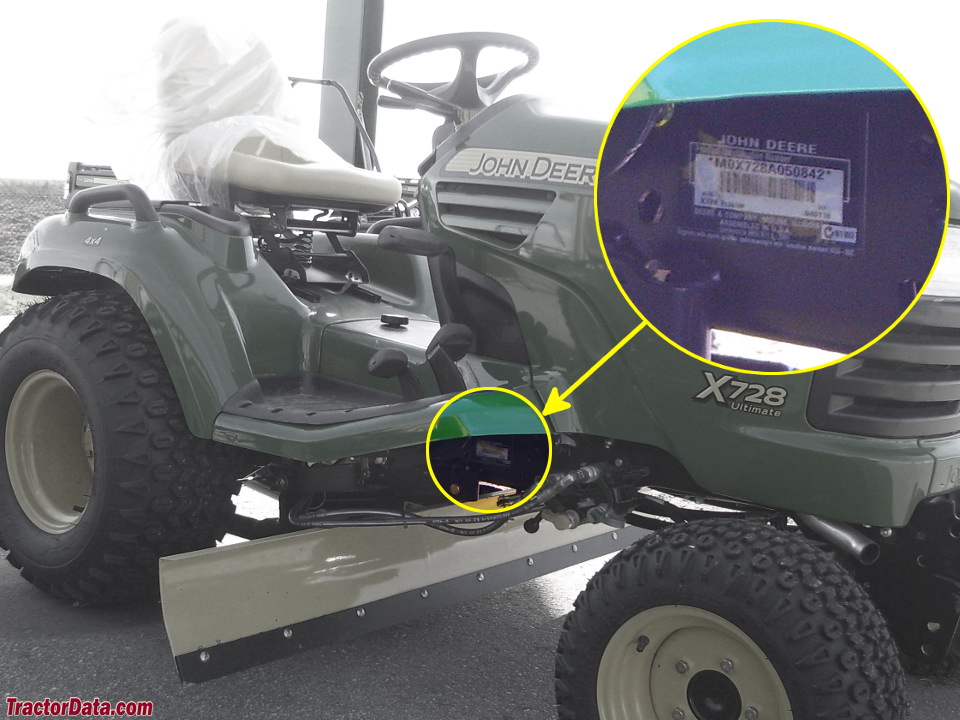

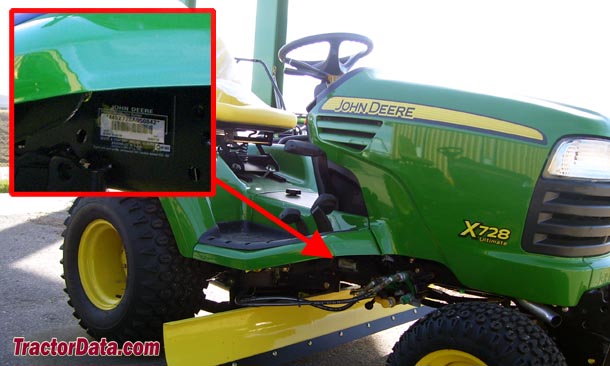

Location:On the center-right of main tractor frame, just behind hydraulic couplers.
photo of X729 serial number

2008: 030001
2009: 040001
2010: 050001
2011: 060001
2012: 070001

how to read serial numbers...



Mechanical:

Transmission:hydrostatic
Chassis:4x4 HFWD 4WD
Steering:hydrostatic power, all-wheel steering
Brakes:wet disc
Cab:Open operator station featuring 18-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab.


Hydraulics:

Pressure:924 psi [63.7 bar]
Valves:2
Total flow:4.5 gpm [17.0 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:20
 40 (optional)


Battery:

Number:1
Cold-cranking amps:340
Volts:12
