Lawn Tractors > John Deere > X740

John Deere X740



John Deere X740 lawn tractor photo
2006 - 2012
Select X700 Series
Garden tractor
Series map:
X729
X740
X744
27.0hp
24.0hp
24.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $9,919 in 2011
Variants
X740two-wheel drive
X7442WD, all-wheel steer
X748four-wheel drive
X7494WD, all-wheel steer
John Deere X740 Engines
24HP Yanmar 1116cc 3-cyl diesel
24HP Yanmar 904cc 3-cyl diesel
Fuel tank6.5 gal
24.6 L
Engine details ...
John Deere X740 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steeringhydrostatic power
Wet disc brakes
Open operator station featuring 18-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab.
Photos

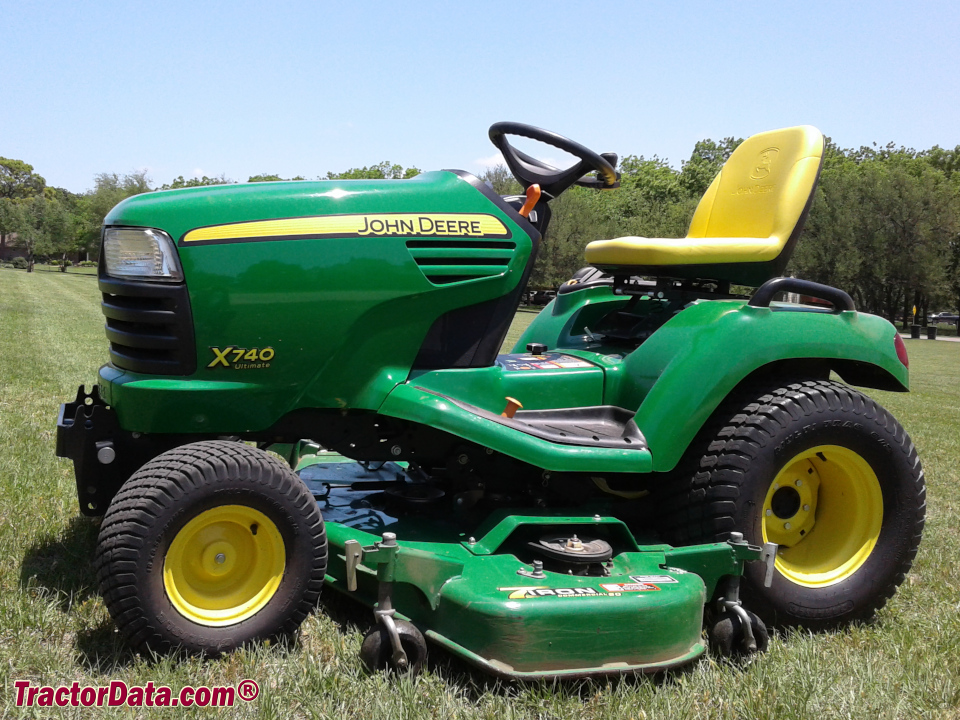

John Deere X740
John Deere X740 photos...
Hydraulics
Pressure924 psi
63.7 bar
Valves2
Total flow4.5 gpm
17.0 lpm
Tractor hitch
Rear Type0 OptOptional
 1-Limited OptOptional
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear RPM540
Mid PTOindependent
Mid RPM2000
Front PTOoptional
Front RPM2000
Dimensions & Tires
Wheelbase54.5 inches
138 cm
Weight1000 lbs
453 kg
Front tire18x8.5-8
Rear tire26x12-12
Full dimensions and tires ...
John Deere X740 attachments
48" mid-mount mower deck
54" mid-mount mower deck
62" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
X740 Serial Numbers
2006010001
2007020001
2008030001
2009040001
2010050001
2011060001

FAQ: How to read a serial number table.
X740 Serial Location
John Deere X740 serial number location
On the center-right of main tractor frame, just behind hydraulic couplers.
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA500
Battery volts12
References
X740 references literature
Select Series Tractors published in 2007, by John Deere
Select Series Tractors published in 2009, by John Deere
Select Series Tractors published in 2012, by John Deere
X700 Series Diesel Mowing Tractors published in 2010, by John Deere
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
Riding Lawn Equipment Attachments & Accessories published in 2011, by John Deere
