John Deere X729 Transmission


John Deere X729 lawn tractor photo
2008 - 2012
Select X700 Series
Garden tractor
Series map:
X728
X729
X740
27.0hp
27.0hp
24.0hp
Transmission
TransmissionKanzaki
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity7.2 qts
6.8 L
Hydrostatic transmission with Twin Touch foot pedals and dashboard-mounted cruise control standard.
Speeds
26-inch tires.

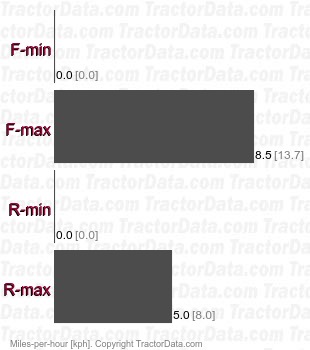

X729  shaft-driven hydrostatic speeds

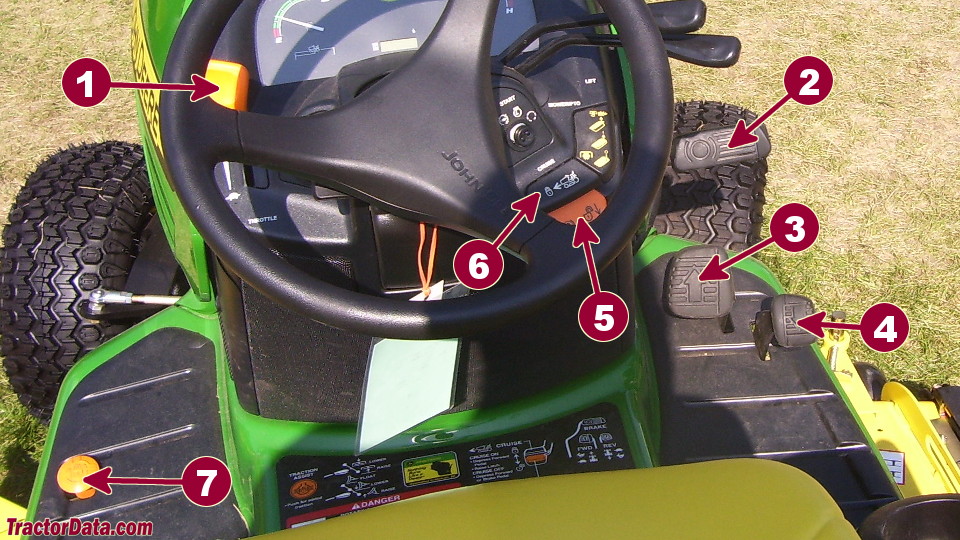

X729 Transmission Controls
John Deere X729 transmission controls
1Throttle
2Brake
3Forward
4Reverse
5Parking brake
6Cruise control
7Differential lock
