Tractors > International Harvester > 2544

International Harvester 2544 - transmission

International Harvester 2544 industrial tractor photo
Industrial tractor
more International Harvester 2544 specifications...






Transmission:

Type:hydrostatic
Gears:infinite (two-range) forward and infinite (two-rangE) reverse
When the International 2544 was equipped with a hydrostatic transmission, the engine was turned up to 2400 RPM. This was intended to increase engine power and compensate for the losses of the hydrostatic.


Transmission:

Type:gear
Gears:5 forward and 1 reverse
Oil capacity:52 qts [49.2 L]
Speeds:With 14.9-24 rear tires.

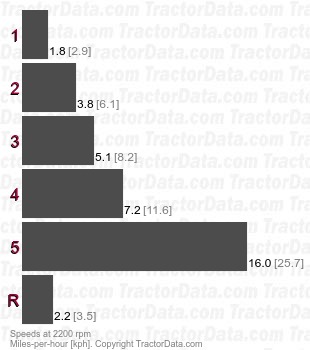

2544  gear speeds


Transmission:

Type:shuttle
Gears:5 forward and reverse
Oil capacity:52 qts [49.2 L]
Speeds:

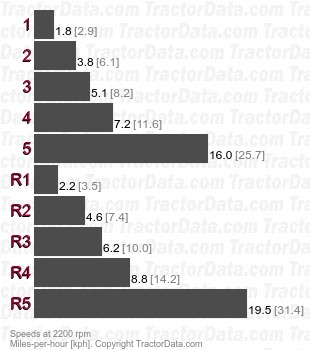

2544  shuttle speeds


Transmission:

Transmission:Torque Amplifier
Type:partial power shift
Gears:10 forward and 2 reverse
Oil capacity:52 qts [49.2 L]
Speeds:With 14.9-24 rear tires.

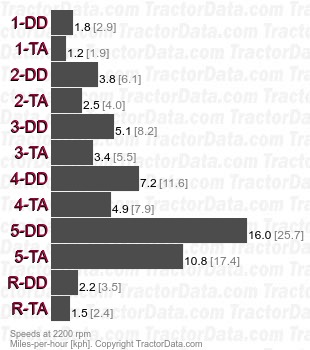

2544 Torque Amplifier partial power shift speeds
