International Harvester 2544 Engine
|
|
| Engine options | |
| International Harvester 3.9L 4-cyl diesel | |
| International Harvester 3.3L 4-cyl gasoline |
| Engine Detail | |
| International Harvester D239 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 238.6 ci 3.9 L |
| Bore/Stroke | 3.875x5.06 inches 98 x 129 mm |
| Power | 65 hp 48.5 kW |
| Gear Rated RPM | 2200 |
| Hydro Rated RPM | 2400 |
| Starter volts | 12 |
| Coolant capacity | 15 qts 14.2 L |
| Intake valve clearance | 0.027 inches (hot) 0.686 mm |
| Exhaust valve clearance | 0.027 inches (hot) 0.686 mm |

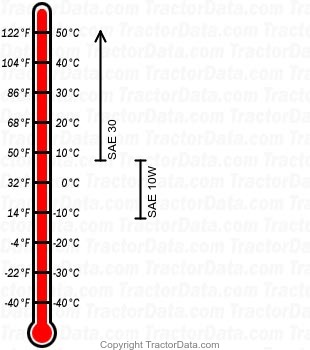

| Engine Oil | |
| |
| Oil capacity | 10 qts 9.5 L |
| Oil change | 100 h |
| Engine Detail | |
| International Harvester C200 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 200.3 ci 3.3 L |
| Bore/Stroke | 3.8125x4.39 inches 97 x 112 mm |
| Power | 63 hp 47.0 kW |
| Gear Rated RPM | 2200 |
| Hydro Rated RPM | 2400 |
| Starter volts | 12 |
| Sparkplug gap | 0.023 inches 0.584 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.027 inches (hot) 0.686 mm |
| Exhaust valve clearance | 0.027 inches (hot) 0.686 mm |

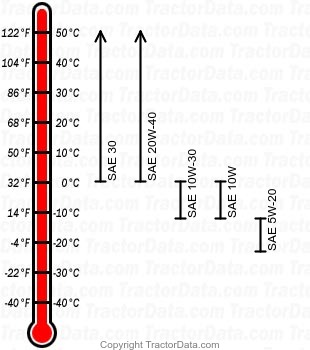

| Engine Oil | |
| |
| Oil capacity | 7 qts 6.6 L |
| Oil change | 100 h |
