Massey Ferguson 481

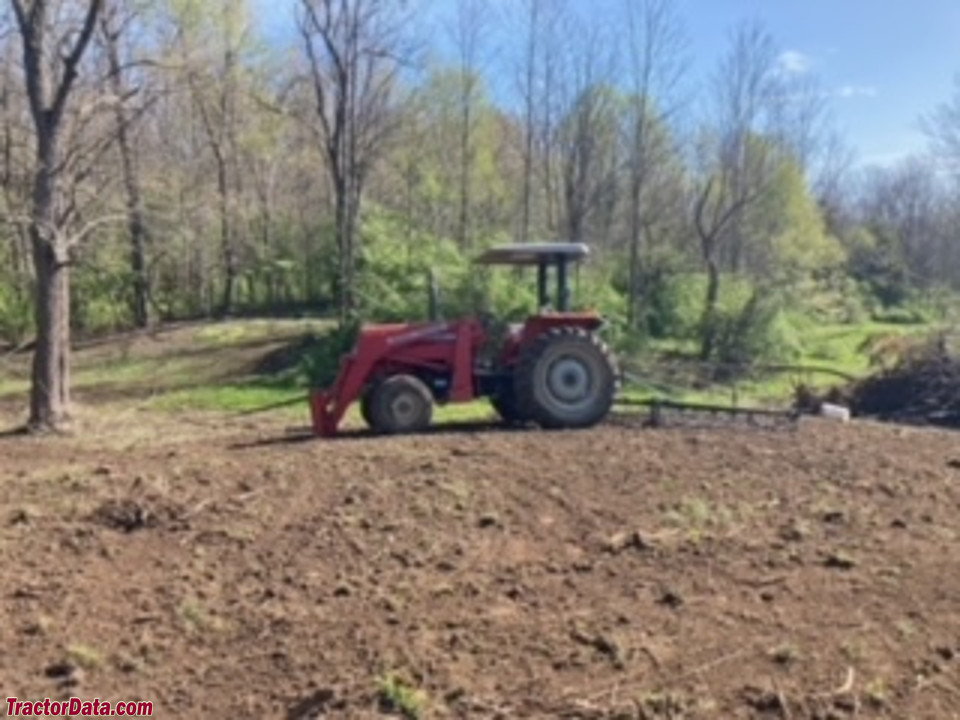

Massey Ferguson 481 tractor photo
2002 - 2006
Model year
400 Series
Utility tractor
Series:471481
Production
Manufacturer:Massey Ferguson (a part of AGCO)
Type:Utility tractor
Factory:Brazil
Massey Ferguson 481 Power
Engine (net):75 hp
55.9 kW
PTO (claimed):69 hp
51.5 kW
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmissions:8-speed gear
 8-speed partially synchronized
Transmission details ...
Photos
No photos of the Massey Ferguson 481 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel:17.4 gal
65.9 L
Hydraulic system:11.1 gal
42.0 L
Hydraulics
Type:open center
Capacity:11.1 gal
42.0 L
Pressure:2500 psi
172.4 bar
Valves:2
Pump flow:11 gpm
41.6 lpm
Steering press.:1740 psi
120.0 bar
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at ends):4630 lbs
2100 kg
Power Take-off (PTO)
Rear PTO:live
 independent*Optional
Clutch:254mm mechanical dry disc
 hydraulic wet disc*With independent PTO option.
Rear RPM:540 (1.375)
Engine RPM:540@1908 (gear)
540@1789 (shuttle)
Dimensions & Tires
2WD Wheelbase:90.2 inches
229 cm
4WD Wheelbase:90 inches
228 cm
Weight:5750 to 6349 pounds
Front tire:7.50-16
2WD Rear tire:16.9-30
Full dimensions and tires ...
481 Serial Numbers
Location:Serial number on the left side of the tractor, below the dashboard.
photo of 481 serial number

Electrical
Ground:negative
Charging system:alternator
Charging amps:35
Battery CCA:750
Battery volts:12
