Massey Ferguson 6715S

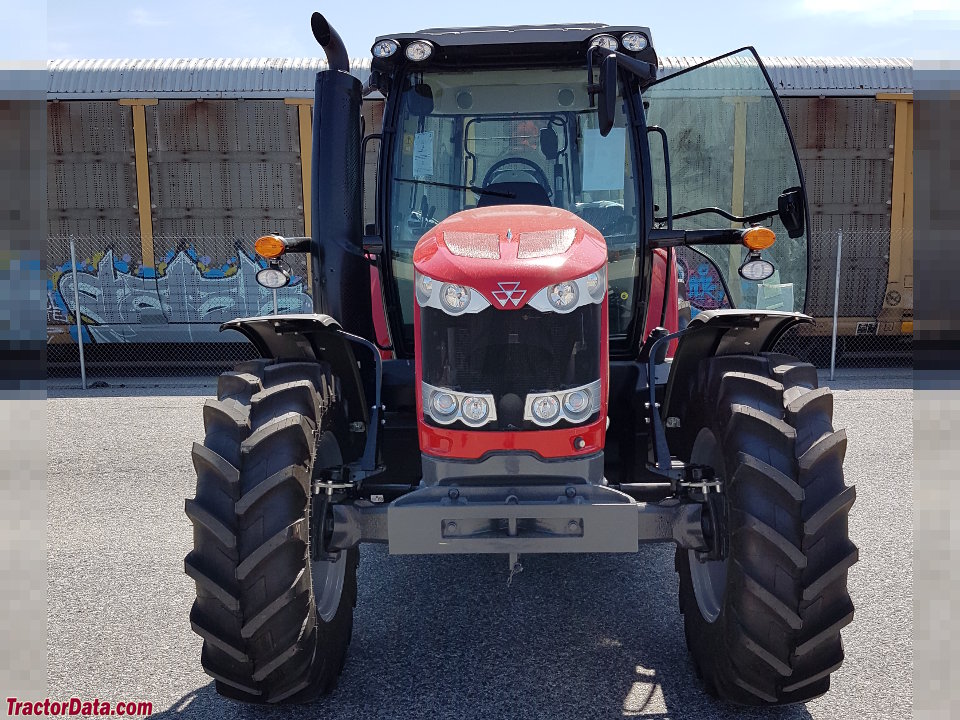

Massey Ferguson 6715S tractor photo
2017 - 2021
6700S Series
Utility tractor
Series map:
6714S
6715S
6716S
130.0hp
140.0hp
150.0hp
Production
ManufacturerMassey Ferguson (a part of AGCO)
Utility tractor
Variants
MT485Esimilar Challenger model
Massey Ferguson 6715S Engine
AGCO Power 4.9L 4-cyl diesel
Fuel tank67 gal
253.6 L
Exhaust fluid (DEF)7.9 gal
29.9 L
Engine details ...
Massey Ferguson 6715S Transmissions
16-speed four-speed power shift
24-speed six-speed power shift
continuously variable transmission (CVT)
Transmission details ...
Massey Ferguson 6715S Power
Engine140 hp
104.4 kW
PTO (claimed)130 hp
96.9 kW
Drawbar (tested)124.6 hp
92.9 kW
PTO (tested)144 hp
107.4 kW
Performance test details ...
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakespneumatic OptOptional
 hydraulic OptOptional
Cab standard with air-conditioning. Available cab suspension.
Hydraulics
Typeopen center
 closed center OptOptional
Pressure2900 psi
200.0 bar
Rear valves5 OptOptional
Front valves2 OptOptional
Pump flow26.4 gpm (open)
99.9 lpm
 29.1 gpm (closed)
110.1 lpm
 50 gpmOptOptional
189.3 lpm
Tractor hitch
Rear TypeIII
Rear lift (at 24"/610mm)11244 lbs
5100 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/1000 (1.375)
Engine RPM540E@1530
 540@1980
 1000E@1570
 1000@2030
Front PTOindependent OptOptional
Front PTO Type1000
Engine RPM1000@1920
Dimensions & Tires
Wheelbase105.1 inches
266 cm
Weight15432 lbs
6999 kg
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps175
 240 *Total capacity with optional dual 120A alternators.
Battery volts12
References
6715S references literature
6700S Series published in 2016, by Massey Ferguson
MF 6700 S published in 2018, by Massey Ferguson
MF 6700 S published in 2019, by Massey Ferguson
