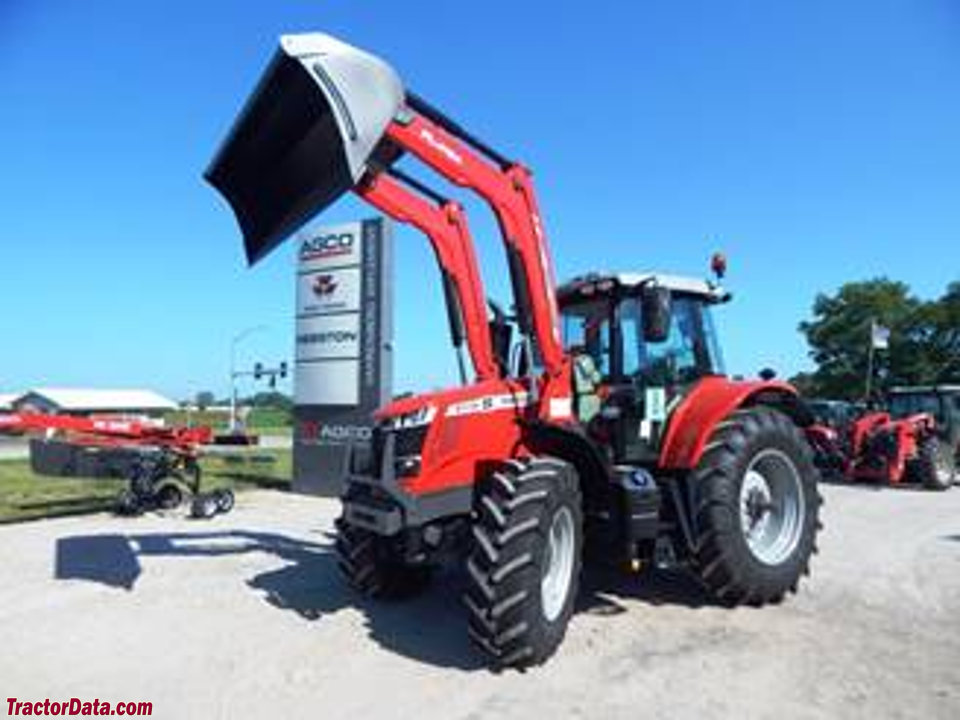

Massey Ferguson 6716S
|
|
| Production | |
| Manufacturer | Massey Ferguson (a part of AGCO) |
| Utility tractor | |
| Variants | |
| MT495E | similar Challenger model |
| Massey Ferguson 6716S Engine | |
| AGCO Power 4.9L 4-cyl diesel | |
| Fuel tank | 67 gal 253.6 L |
| Exhaust fluid (DEF) | 7.9 gal 29.9 L |
 Engine details ... | |
| Massey Ferguson 6716S Transmissions | |
| 16-speed four-speed power shift | |
| 24-speed six-speed power shift | |
| continuously variable transmission (CVT) | |
 Transmission details ... |
| Massey Ferguson 6716S Power | |
| Engine | 150 hp 111.9 kW |
| PTO (claimed) | 140 hp 104.4 kW |
| Drawbar (tested) | 128.1 hp 95.5 kW |
| PTO (tested) | 138.4 hp 103.2 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | electro-hydraulic front and rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| Trailer brakes | pneumatic OptOptional |
| hydraulic OptOptional | |
| Cab standard with air-conditioning. Available cab suspension. | |
| Hydraulics | |
| Type | open center |
| closed center OptOptional | |
| Pressure | 2900 psi 200.0 bar |
| Rear valves | 5 OptOptional |
| Front valves | 2 OptOptional |
| Pump flow | 26.4 gpm (open) 99.9 lpm |
| 29.1 gpm (closed) 110.1 lpm | |
| 50 gpmOptOptional 189.2 lpm | |
| Tractor hitch | |
| Rear Type | III |
| Rear lift (at 24"/610mm) | 11244 lbs 5100 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540/1000 (1.375) |
| Engine RPM | 540E@1530 |
| 540@1980 | |
| 1000E@1570 | |
| 1000@2030 | |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 |
| Engine RPM | 1000@1920 |
| Dimensions & Tires | |
| Wheelbase | 105.1 inches 266 cm |
| Weight | 15432 lbs 6999 kg |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 175 |
| 240 *Total capacity with optional dual 120A alternators. | |
| Battery volts | 12 |

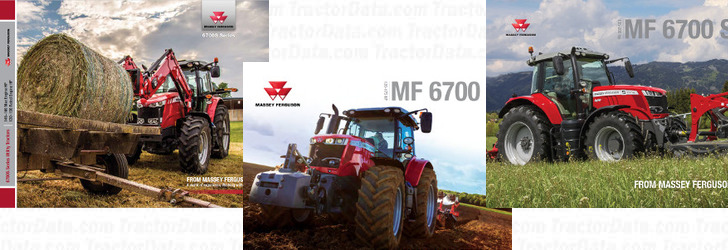

| References | |
 | |
| 6700S Series published in 2016, by Massey Ferguson | |
| MF 6700 S published in 2018, by Massey Ferguson | |
| MF 6700 S published in 2019, by Massey Ferguson |
