Massey Ferguson 6S.155
|
|
| Production | |
| Manufacturer | Massey Ferguson (a part of AGCO) |
| Row-Crop tractor | |
| Massey Ferguson 6S.155 Engine | |
| AGCO Power 4.9L 4-cyl diesel | |
| Fuel tank | 74 gal 280.1 L |
| Exhaust fluid (DEF) | 9.3 gal 35.2 L |
 Engine details ... | |
| Massey Ferguson 6S.155 Transmissions | |
| 24-speed six-speed power shift | |
| continuously-variable transmission | |
 Transmission details ... |
| Massey Ferguson 6S.155 Power | |
| Engine | 152.9 hp 114.0 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard with air-conditioning. |
| Photos | |
| No photos of the Massey Ferguson 6S.155 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| closed center OptOptional | |
| Pressure | 2900 psi 200.0 bar |
| Rear valves | up to 5 |
| Front valves | up to 2 |
| Pump flow | 26.4 gpm (open) 99.9 lpm |
| 29.1 gpm (closed) 110.1 lpm | |
| 39.6 gpm (closed optional) 149.9 lpm | |
| 50.2 gpm (closed optional) 190.0 lpm | |
| Tractor hitch | |
| Rear Type | III |
| Dyna-6 Rear lift | 15653 lbs 7100 kg |
| Dyna-6 Rear lift | 17857 lbs 8099 kg |
| Dyna-VT Rear lift | 21164 lbs 9599 kg |
| Front Hitch | III |
| Front lift | 7055 lbs 3200 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear RPM | 540/1000 (1.375) |
| Engine RPM | 540@1980 540E@1530 1000@2030 1000E@1570 |
| Front PTO | independent |
| Front RPM | 1000 |
| Engine RPM | 1000@1920 |
| Dimensions & Tires | |
| Wheelbase | 105.1 inches 266 cm |
| Weight | 13889 to 16535 pounds |
| Front tire | 420/85R28 |
| Rear tire | 520/85R38 |
 Full dimensions and tires ... | |

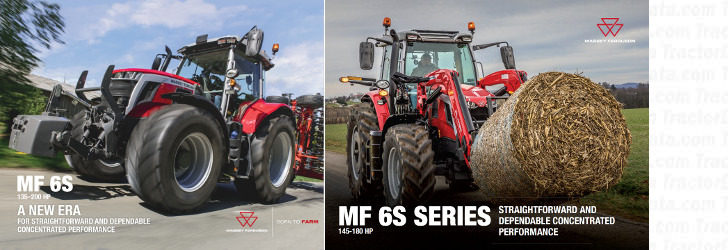

| References | |
 | |
| MF 6S - A New Era published in 2021, by Massey Ferguson | |
| MF 6S Series published in 2022, by Massey Ferguson |
