Tractors > John Deere > 1025R

John Deere 1025R

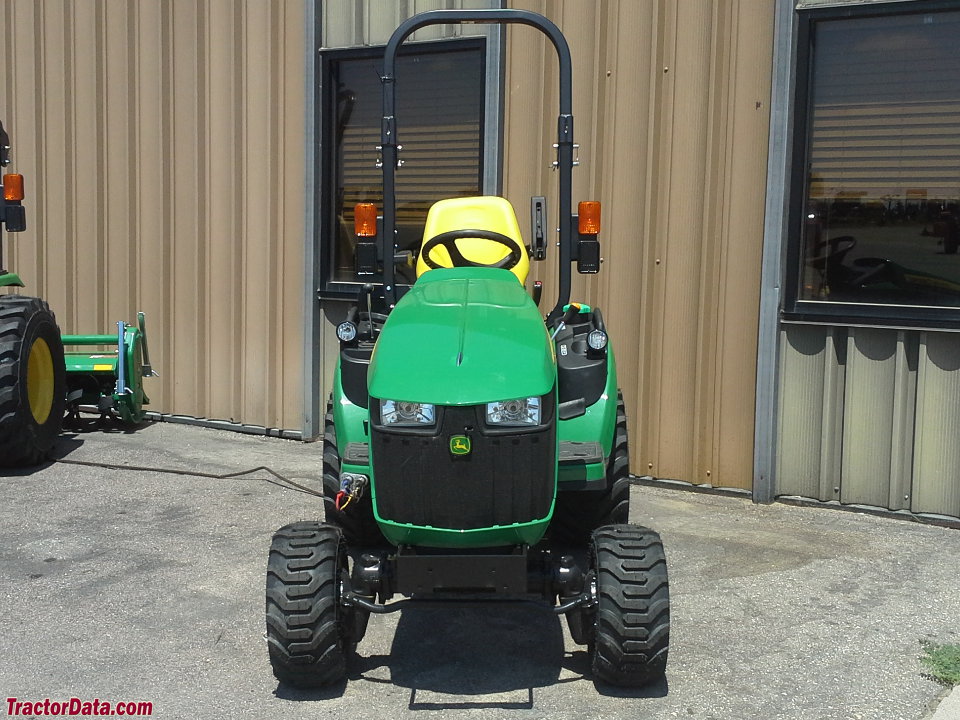

John Deere 1025R tractor photo
2013 - 2026
1 Sub-Compact Series
Sub-Compact Utility tractor
Series map:
1023E
1025R
22.4hp
23.8hp
Production
ManufacturerJohn Deere
Sub-Compact Utility tractor
Built in Augusta, Georgia, USA
Original price$13,361 (2013)
$14,301 (2019)
$18,013 (2026)
John Deere 1025R Engine
Yanmar 1.3L 3-cyl diesel
Engine details ...
John Deere 1025R Transmission
hydrostatic
Transmission details ...
John Deere 1025R Power
Engine23.8 hp
17.7 kW
PTO (claimed)18 hp
13.4 kW
Mechanical
Four-wheel drive
Final drivesspur gear
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS on semi-flat platform.
Photos

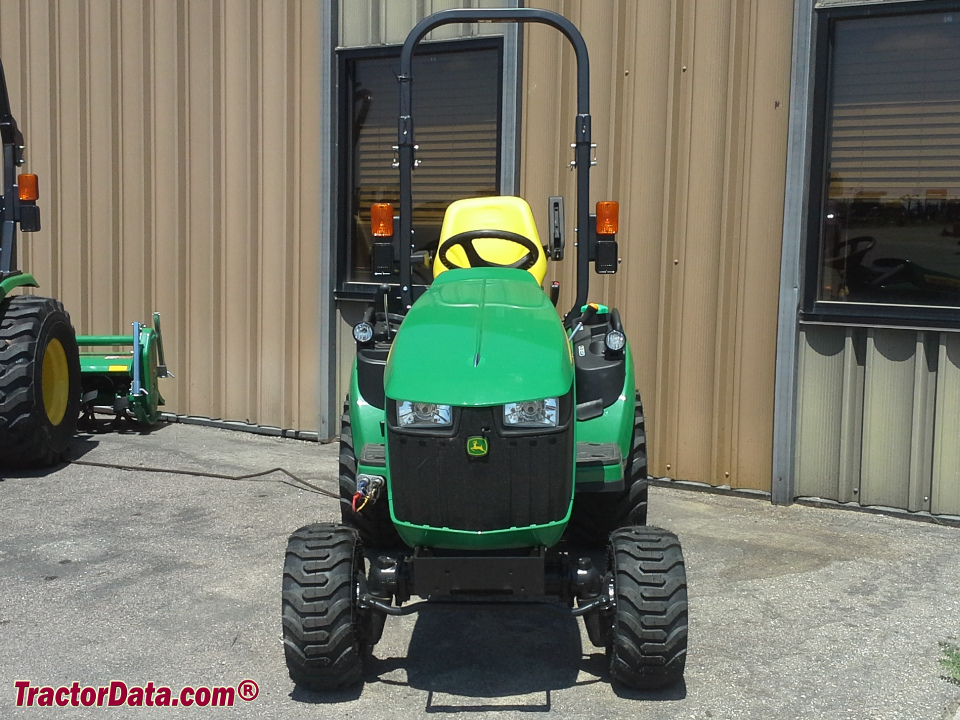

John Deere 1025R compact utility tractor.
John Deere 1025R photos...
Capacity
Fuel5.6 gal
21.2 L
Hydraulic system3.25 gal
12.3 L
Front axle2.5 qts
2.4 L
Hydraulics
Typeopen center
Capacity3.25 gal
12.3 L
Pressure2000 psi
137.9 bar
Valves2 or 3
Pump flow3.5 gpm
13.2 lpm
Total flow6.3 gpm
23.8 lpm
Steering flow2.8 gpm
10.6 lpm
Tractor hitch
Rear TypeI (limited)
Controlposition control
Rear lift (at 24"/610mm)681 lbs
308 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchwet disc
Rear PTO Type540 (1.375)
Engine RPM540@3200
Mid PTOindependent
Mid PTO Type2100
Engine RPM2100@3200
Dimensions & Tires
Wheelbase57.1 inches
145 cm
Weight1444 lbs
654 kg
Full dimensions and tires ...
John Deere 1025R attachments
54" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
1025R Serial Number Location
John Deere 1025R serial number location
Serial number plate on the right side of the 1025R frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Battery CCA500
Battery volts12
References
1025R references literature
1 Family published in 2016, by John Deere
1 Series published in 2019, by John Deere
