Tractors > John Deere > 1023E

John Deere 1023E

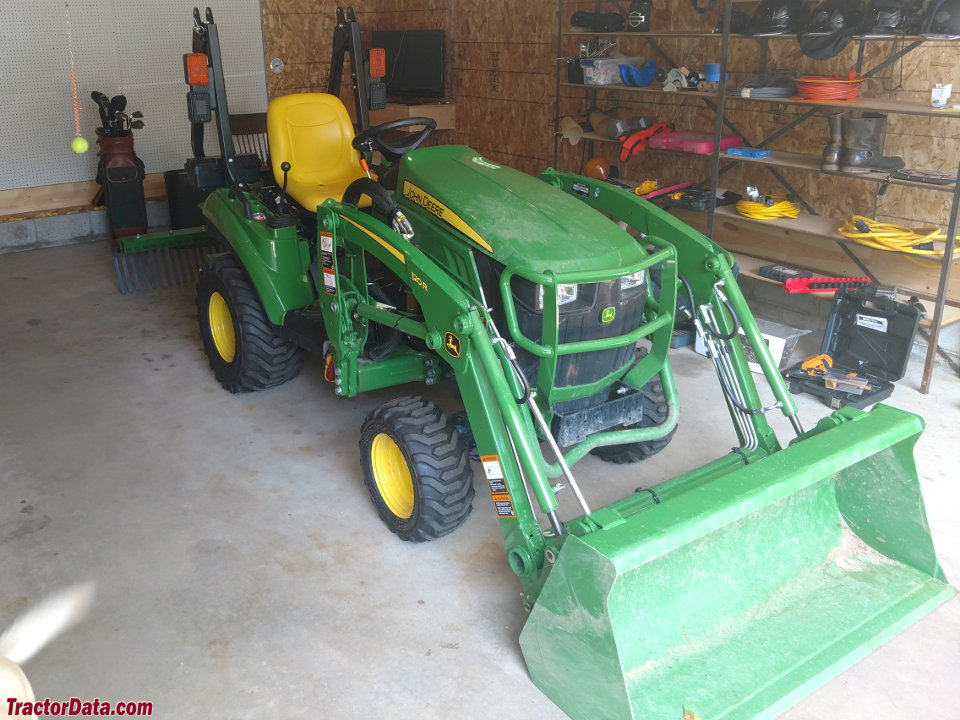

John Deere 1023E tractor photo
2011 - 2026
Model year
1 Sub-Compact Series
Sub-Compact Utility tractor
Series map:
1023E
1025R
22.4hp
23.8hp
Production
ManufacturerJohn Deere
Sub-Compact Utility tractor
Built in Augusta, Georgia, USA
Original price$12,062 (2018)
$15,129 (2026)
John Deere 1023E Engine
Yanmar 1.0L 3-cyl diesel
Fuel tank5.6 gal
21.2 L
Engine details ...
John Deere 1023E Transmission
hydrostatic
Transmission details ...
John Deere 1023E Power
Engine (gross)22.4 hp
16.7 kW
PTO (claimed)14.5 hp
10.8 kW
Mechanical
Four-wheel drive
Final drivesbull gear
Differential lockstandard
Power steering
Wet disc brakes
Two-post folding ROPS.
Photos
John Deere 1023E, right side.
John Deere 1023E photos...
Hydraulics
Typeopen center
Pressure2150 psi
148.2 bar
Valves2
Pump flow3.5 gpm
13.2 lpm
Total flow6.3 gpm
23.8 lpm
Steering flow2.8 gpm
10.6 lpm
Tractor hitch
Rear TypeI (limited)
Rear lift (at 24"/610mm)681 lbs
308 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540 (1.375)
Mid PTOindependent
Clutchelectro-hydraulic wet disc
Mid PTO Type2100
Dimensions & Tires
Wheelbase57.1 inches
145 cm
Weight1345 lbs
610 kg
Full dimensions and tires ...
John Deere 1023E attachments
54" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Charging volts12
Battery CCA500
Battery volts12
References
1023E references literature
1 Family published in 2016, by John Deere
1 Series published in 2019, by John Deere
