CaseIH Magnum 290

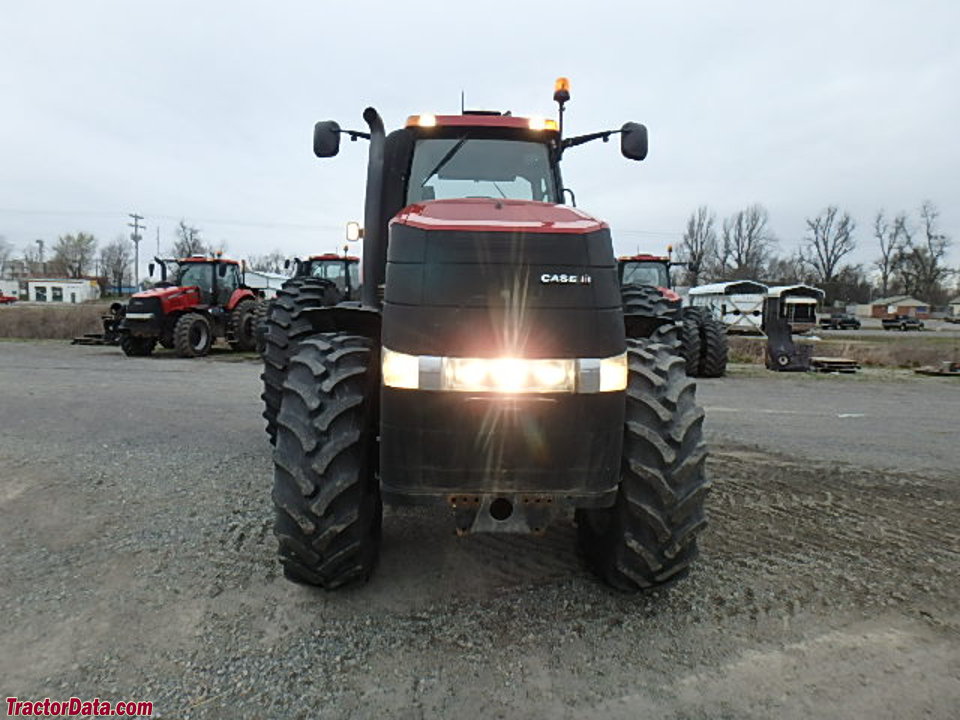

CaseIH Magnum 290 tractor photo
2011 - 2013
Magnum Series
Row-Crop tractor
Series map:
Magnum 260
Magnum 290
Magnum 315
257.0hp
284.0hp
312.0hp
Production
ManufacturerCaseIH (a part of CNH)
Row-Crop tractor
Built in Racine, Wisconsin, USA
CaseIH Magnum 290 Engine
FPT 8.7L 6-cyl diesel
Fuel tank168 gal
635.9 L
Exhaust fluid (DEF)23.6 gal
89.3 L
Engine details ...
CaseIH Magnum 290 Transmissions
19-speed full power shift
18-speed full power shift
23-speed creeper
continuously variable transmission
Transmission details ...
CaseIH Magnum 290 Power
Engine (gross)284 hp
211.8 kW
Engine (max)317 hp
236.4 kW
PTO (claimed)240 hp
179.0 kW
Drawbar (tested)213.64 hp
159.3 kW
PTO (tested)300.90 hp
224.4 kW
Performance test details ...
Mechanical
Four-wheel drive
Steeringpower
Magnum Surveyor cab standard. Optional cab suspension.
Hydraulics
Typepressure-flow compensating
Rear valves4 to 6
Total flow44 gpm
166.5 lpm
 59 gpm (optional)
223.3 lpm
 75 gpm (optional)
283.9 lpm
Tractor hitch
Rear Type3/3N
 4N/3 (optional)
Rear lift12,800 lbs (3/3N 109cm links)
5806 kg
 14,800 lbs (3/3N 96cm links)
6713 kg
 15,400 lbs (3/3N 109cm links opt.)
6985 kg
 17,400 lbs (3/3N 96cm links opt.)
7892 kg
 17,400 lbs (4N/3 109cm links)
7892 kg
 19,400 lbs (4N/3 96cm links)
8799 kg
Front Hitchoptional
Front lift9,426 lbs
4275 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
 540/1000 (1.375)OptOptional
Engine RPM540@1804
 1000@1804
Front PTOindependent OptOptional
Front PTO Type1000 (1.375)
Dimensions & Tires
Wheelbase120 inches
304 cm
Weight27,400 lbs
12428 kg
Full dimensions and tires ...
Magnum 290 Serial Number Location
CaseIH Magnum 290 serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps200
Batteries2
Battery volts12
References
Magnum 290 references literature
Magnum Series Tractors published in 2011, by CaseIH
Magnum Series Tractors New 2011 Preview published in 2010, by CaseIH
