CaseIH Magnum 235 - tests

CaseIH Magnum 235 tractor photo
2011 - 2013   Magnum Series
Row-Crop tractor
Previous model:CaseIH Magnum 215
Next model:CaseIH Magnum 250
Series next:CaseIH Magnum 260
more CaseIH Magnum 235 specifications...






OCED Tractor Test 2017A:

Nebraska summary:816A

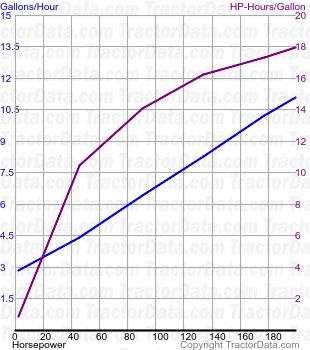

Magnum 235 fuel use from test 816A
Test Date:April 4 - 18, 2012
Type:Diesel 18-speed 4WD
PTO power (rated engine speed):198.86 hp [148.3 kW]
PTO fuel use (engine speed):11.1 gal/hour [42.0 l/hour]
PTO power (rated PTO speed):233.95 hp [174.5 kW]
PTO fuel use (PTO speed):12.1 gal/hour [45.8 l/hour]
Drawbar power (max):172.71 hp [128.8 kW]
Drawbar fuel use (max):11.1 gal/hour [42.0 l/hour]
Drawbar pull (max):21648 lbs [9819 kg]
Max pull gear:4
Test report:PDF file
