CaseIH Magnum 260 Tests


CaseIH Magnum 260 tractor photo
2011 - 2013
Magnum Series
Row-Crop tractor
Series map:
Magnum 235
Magnum 260
Magnum 290
235.0hp
257.0hp
284.0hp
OCED Tractor Test 2018A

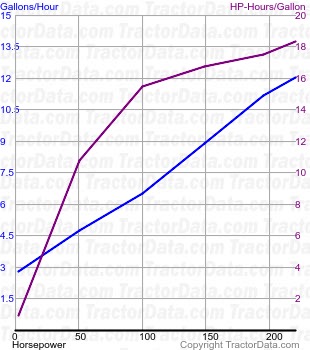

Magnum 260 fuel use from test 817A
OCED Tractor Test 2018A
Diesel 18-speed 4WD
April 6 - 18, 2012
Link: OCED Tractor Test 2018A file
PTO performance
Max power275.83 hp
205.7 kW
Fuel use13.9 gal/hour
52.6 l/hour
Power at rated engine speed219.98 hp
164.0 kW
Fuel use12.0 gal/hour
45.4 l/hour
Power at rated PTO speed275.83 hp
205.7 kW
Fuel use13.9 gal/hour
52.6 l/hour
Drawbar performance
Max power191.67 hp
142.9 kW
Fuel use12.1 gal/hour
45.8 l/hour
Gear 7 used for power test.
Max pull22126 lbs
10036 kg
Gear 5 used for pull test.
