McCormick-Deering Super WD-9

McCormick-Deering Super WD-9 tractor photo
1953 - 1956
Standard-tread tractor
Previous model:McCormick-Deering WD-9
Series back:McCormick-Deering Super WD-6






Production:

Manufacturer:McCormick-Deering (a part of International Harvester)
Factory:Milwaukee, Illinois, USA
Total built:10,938


Variants:

Super WDR-9:rice special


McCormick-Deering Super WD-9 Engine:

   International Harvester 5.7L 4-cyl diesel
full engine details ...


Capacity:

Fuel:35 gal [132.5 L]


Power Take-off (PTO):

Rear RPM:540


Dimensions & Tires:

Wheelbase:83.4 inches [211 cm]
Weight:7300 to 12790 pounds
Front tire:7.50x18
Rear tire:18.00x26
full dimensions and tires ...


Super WD-9 Serial Numbers:

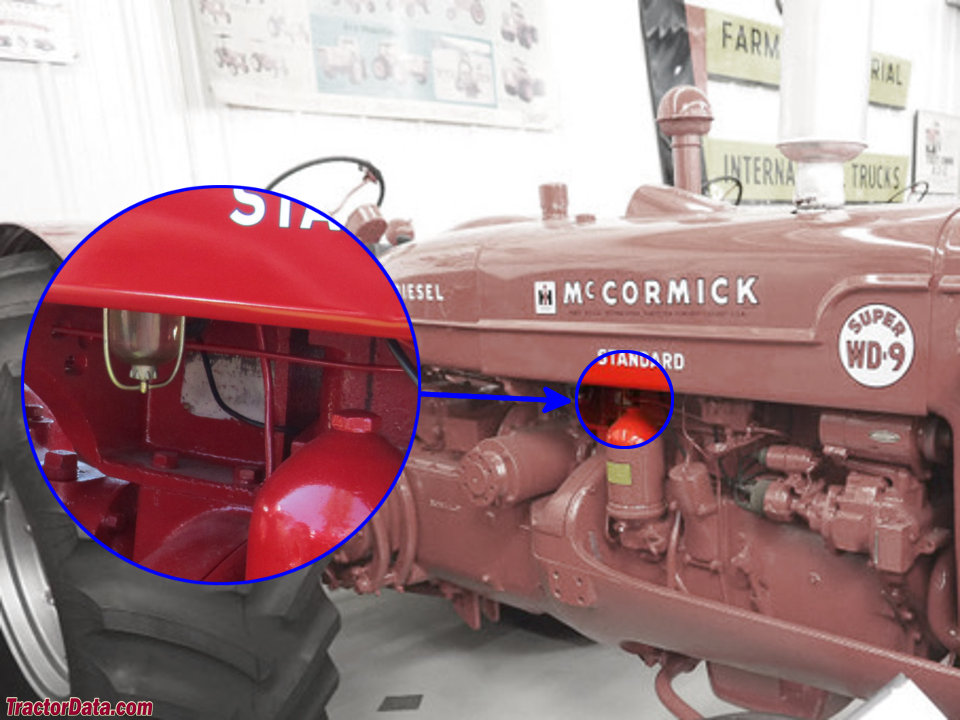

Location:Serial number plate on the right side of the Super WD-9 clutch housing.
photo of Super WD-9 serial number

1953: 501
1954: 1935
1955: 5232
1956: 6864
Final: 7232
1956: 6866 (WDR-9)
Final: 7242 (WDR-9)

how to read serial numbers...



McCormick-Deering Super WD-9 Power:

Belt (claimed):65 hp [48.5 kW]
Drawbar (tested):57.37 hp [42.8 kW]
Belt (tested):65.19 hp [48.6 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:manual
Brakes:mechanical disc
Cab:Open operator station.


Belt Pulley:

Diameter:14 inches [35 cm]
Width:8.5 inches [21 cm]
RPM:707
Speed:2593 ft/min [790.35 meters/min]


Battery:

Number:2
Volts:6
