McCormick-Deering Super WD-9 Tests



McCormick-Deering Super WD-9 tractor photo
1953 - 1956
Standard-tread tractor
Series map:
Super WD-6
Super WD-9
45.6hp*
72.2hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 518

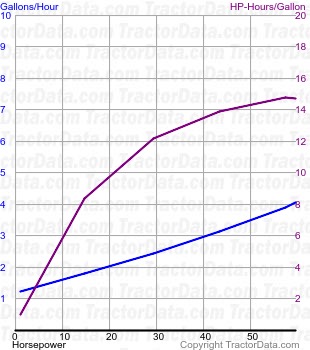

Super WD-9 fuel use from test 518
Nebraska Tractor Test 518
Diesel 5-speed 2WD
May 10 - 19, 1954
Link: Nebraska Tractor Test 518 file
Belt power (max)65.19 hp
48.6 kW
Belt fuel use (max)4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power57.37 hp
42.8 kW
Gear 3 used for power test.
Max pull8,416 lbs
3817 kg
Gear 1 used for pull test.
