McCormick-Deering WD-9

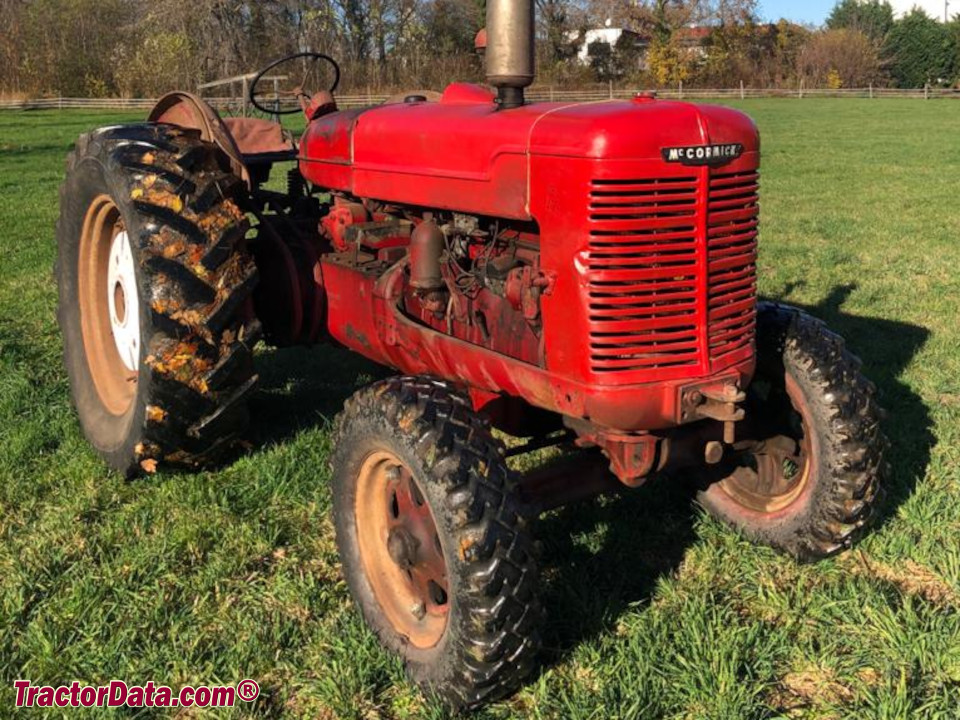

McCormick-Deering WD-9 tractor photo
1940 - 1954
Standard-tread tractor
Series map:
WD-9
46.7hp*
*Estimated engine power for comparison only.
Production
ManufacturerMcCormick-Deering (a part of International Harvester)
Standard-tread tractor
FactoriesMilwaukee, Wisconsin, USA
 Melrose Park, Illinois, USA
Variants
W-9gasoline
WD-9diesel
I-9industrial
McCormick-Deering WD-9 Engine
International Harvester 5.5L 4-cyl diesel
Fuel tank36 gal
136.3 L
Aux. fuel0.88 gal
3.3 L
Engine details ...
McCormick-Deering WD-9 Power
Drawbar (claimed)33 hp
24.6 kW
Belt (claimed)42 hp
31.3 kW
Drawbar (tested)42.57 hp
31.7 kW
Belt (tested)46.43 hp
34.6 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Differential mechanical contracting band brakes
Open operator station.
Dimensions & Tires
Weight6650 lbs
3016 kg
Front tire30-6
Rear tire48-12
Full dimensions and tires ...
WD-9 Serial Numbers
Location:Serial number plate near the fuel tank.
1940WDCB 501
1941WDCB 578
1942WDCB 2993
1943WDCB 3651
1944WDCB 5394
1945WDCB 11459
1946WDCB 17289
1947WDCB 22714
1948WDCB 29207
1949WDCB 36159
1950WDCB 45551
1951WDCB 51739
1952WDCB 59407
1953WDCB 64014

FAQ: How to read a serial number table.
Belt Pulley
Diameter14 inches
35 cm
Width8.5 inches
21 cm
RPM707
Speed2593 ft/min
790.35 meters/min
References
WD-9 references literature
Farmall Letter Series Tractors by Lee Klancher
McCormick-Deering Standard Tractors published in 1946, by International Harvester
McCormick Standard Tractors published by International Harvester
General Line Catalog published in 1949, by International Harvester
