| | 1953 - 1956 |
| Standard-tread tractor |
|
Series map:
Super WD-6
Super WD-9
45.6hp*
72.2hp*
*Estimated engine power for comparison only.
| Engine Detail |
| International Harvester |
| diesel |
| 4-cylinder |
| liquid-cooled vertical I-head |
| Displacement | 349.9 ci
5.7 L
|
| Bore/Stroke | 4.50x5.50 inches
114 x 140 mm
|
| Compression | 15.6:1
|
| Rated RPM | 1500
|
| Starter | gasoline-start
|
| Starter volts | 12
|
| Coolant capacity | 36 qts
34.1 L
|

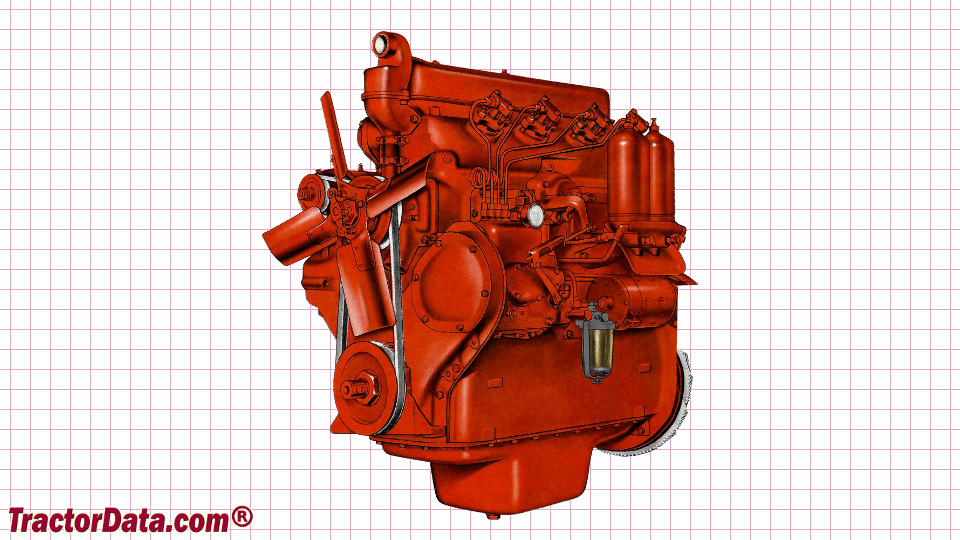

| McCormick-Deering Super WD-9 Engine |
 |
