Tractors > New Holland > TS100

New Holland TS100 Engine



New Holland TS100 tractor photo
1999 - 2003
TS Series
Series map:
TS90
TS100
TS110
90.0hp
100.0hp
110.0hp
Engine Detail
New Holland Genesis
turbocharged diesel
4-cylinder
liquid-cooled
Displacement304 ci
5.0 L
Bore/Stroke4.40x5.00 inches
112 x 127 mm
Power100 hp
74.6 kW
Compression17.5:1
Rated RPM2170
Firing order1-3-4-2
Starter volts12
Coolant capacity14.8 qts
14.0 L
 16.8 qts*With cab
15.9 L
Intake valve clearance0.014-0.018 inches*Cold
0.356 mm
Exhaust valve clearance0.017-0.021 inches*Cold
0.432 mm
Engine Oil

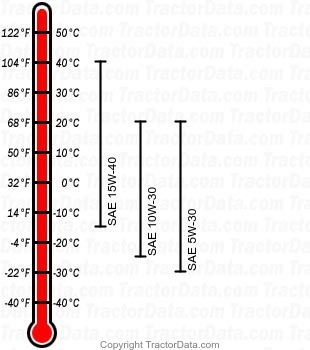

TS100 diesel engine oil chart
Oil capacity12 qts
11.4 L
