Fiat 580 - transmission

Fiat 580 tractor photo
1978 - 1984
Series next:Fiat 680
more Fiat 580 specifications...






Transmission:

Type:partially synchronized
Gears:8 forward and 2 reverse
Four gears (1-4) plus reverse (R) in two ranges (low/high).
Speeds:With 12.4/11-36 rear tires.
580  partially synchronized speeds


Transmission:

Gears:12 forward and 3 reverse
Four gears (1-4) plus reverse (R) in three ranges (low/intermediate/high).
Speeds:With 12.4/11-36 rear tires.

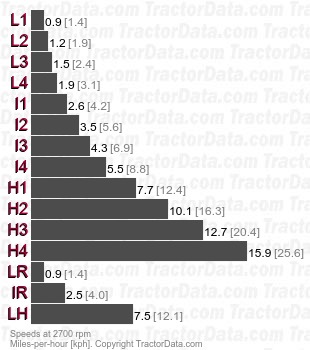

580   speeds


Transmission:

Type:mechanical shuttle
Gears:8 forward and reverse
Four gears (1-4) in two ranges (low/high) with shuttle shift.
Speeds:With 12.4/11-36 rear tires. Reverse speeds are 10% slower than forward.

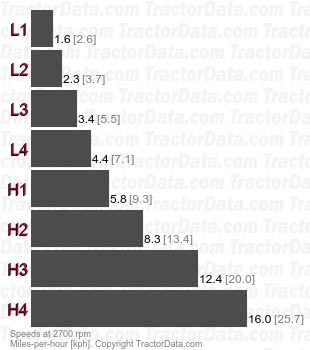

580  mechanical shuttle speeds


Transmission:

Type:creeper
Gears:16 forward and 4 reverse
Four gears (1-4) plus reverse (R) in four ranges (creeper/low/intermediate/high).
Speeds:With 12.4/11-36 rear tires.

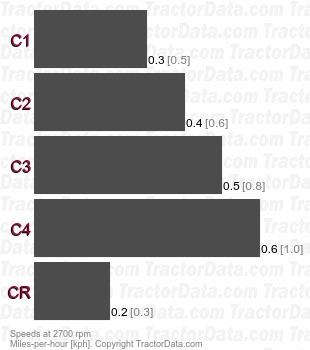

580  creeper speeds
