Fiat 580

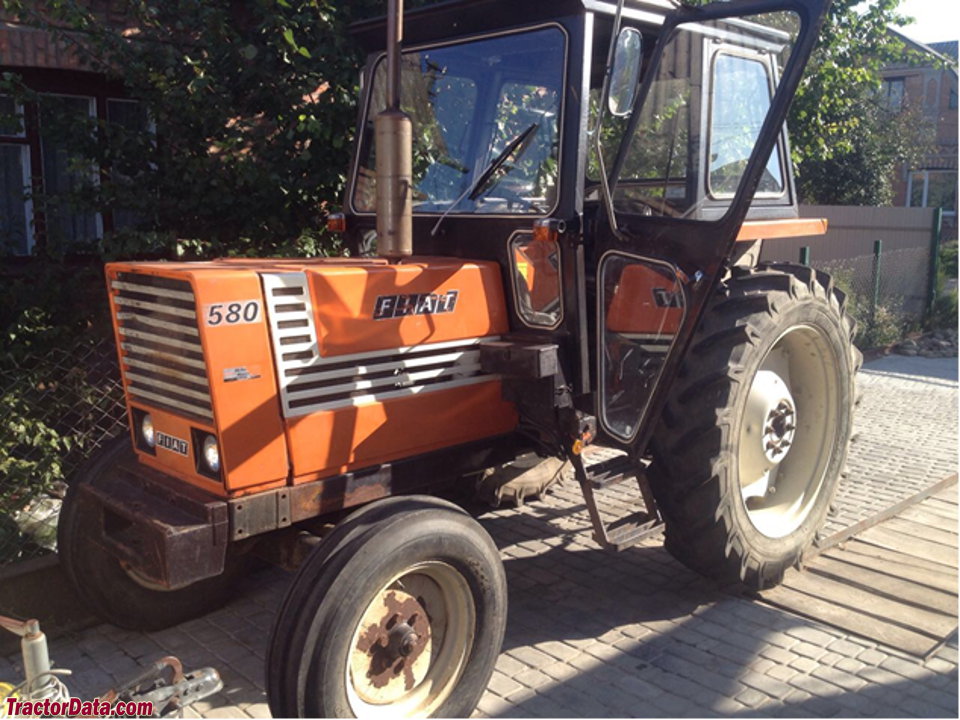

Fiat 580 tractor photo
1978 - 1984
Utility tractor
Series:580680
Production
Manufacturer:Fiat
Type:Utility tractor
Variants
580:utility
570:orchard
Fiat 580 Power
Engine:57.2 hp
42.7 kW
PTO (claimed):50 hp
37.3 kW
Fiat 580 Engine
Fiat 2.8L 3-cyl diesel
Fuel tank:21.1 gal
79.9 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Steering:power
Brakes:hydraulic wet disc
Cab:Four-post ROPS. Cab optional with available air-conditioning.
Transmissions:8-speed partially synchronized
 12-speed
 8-speed mechanical shuttle
 16-speed creeper
Transmission details ...
Hydraulics
Pump flow:7.4 gpm
28.0 lpm
Tractor hitch
Rear Type:II/I
Rear lift:5292 lbs
2400 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2314
Dimensions & Tires
2WD Wheelbase:85.5 inches
217 cm
4WD Wheelbase:85 inches
215 cm
Weight:5149 to 5766 pounds
Front tire:6.00-19
2WD Rear tire:12.4/11-36
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:33
Battery volts:12
