Series map:
580
680
57.2hp
68.0hp
Transmissions overview |
8-speed partially synchronized |
12-speed |
8-speed mechanical shuttle |
16-speed creeper |

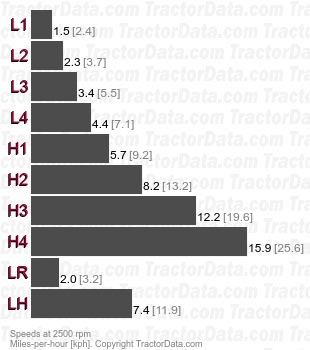

Transmission |
Type | partially synchronized
|
Gears | 8 forward and 2 reverse
|
Four gears (1-4) plus reverse (R) in two ranges (low/high). |
Speeds |
With 13.6/12-38 rear tires. |
|

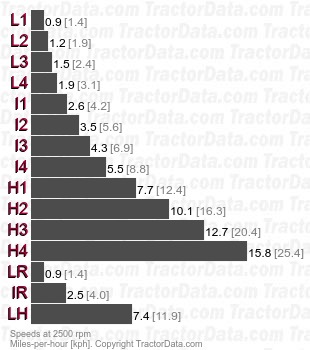

Transmission |
Gears | 12 forward and 3 reverse
|
Four gears (1-4) plus reverse (R) in three ranges (low/intermediate/high). |
Speeds |
With 13.6/12-38 rear tires. |
|

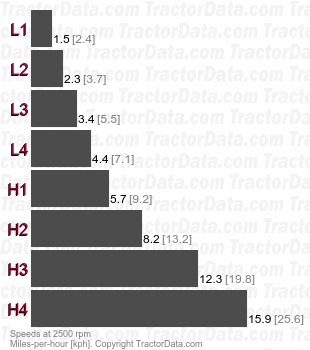

Transmission |
Type | mechanical shuttle
|
Gears | 8 forward and reverse
|
Four gears (1-4) in two ranges (low/high) with shuttle shift. Reverse speeds are 10% slower than forward. |
Speeds |
With 13.6/12-38 rear tires. |
|

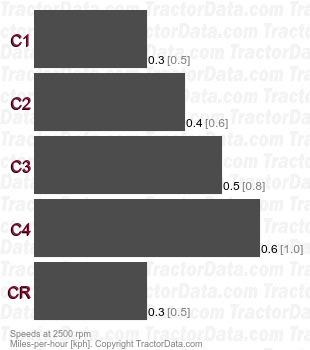

Transmission |
Type | creeper
|
Gears | 16 forward and 4 reverse
|
Four gears (1-4) plus reverse (R) in four ranges (creeper/low/intermediate/high). |
Speeds |
With 13.6/12-38 rear tires. |
|
